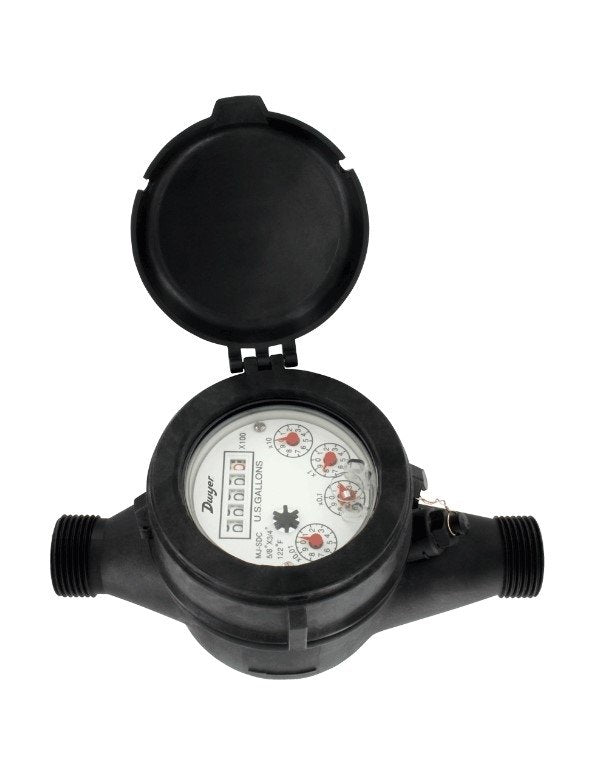

Dwyer WPTN-A-C-01 | NSF Multi-Jet Plastic Water Meter | 5/8" x 1/2", 0.1 gal/pulse
With a 0.1 gal/pulse pulse and 5/8" x 1/2" connection, the Dwyer WPTN-A-C-01 is a plastic multi-jet water meter carrying NSF certification. The WPTN-A-C-01 suits applications where brass meters are a poor match, including potable water, some corrosive environments and low-cost totalising.
- Accuracy ±1.5% at nominal and ±3% at minimum flow (WPTN-A-C-01)
- 5/8" x 1/2" body rated to 150 psi (10 bar) (WPTN-A-C-01)
- WPTN-A-C-01 wetted materials: PA body and couplings, ABS chamber
- Output of 0.1 gal/pulse with frequency proportional to flow, rated 0.01 A @ 24 VAC/DC
- Horizontal mounting, face up; weight 1.55 lb (0.7 kg) (WPTN-A-C-01)
- Specifications
- Features
- Downloads
| Part Number | WPTN-A-C-01 |
| Brand | Dwyer |
| Type | NSF-certified multi-jet plastic water meter |
| Pipe Size | 5/8" x 1/2" |
| Pulse Output | 0.1 gal/pulse |
| Accuracy | ±1.5% nominal flow; ±3% minimum flow |
| Mounting | Horizontal, meter face up |
| Weight | 1.55 lb (0.7 kg) |
| Max Pressure | 150 psi (10 bar) |
| Measuring Chamber | ABS plastic |
| Pulse Rating | 0.01 A @ 24 VAC/DC |
| Lead Wires | 3.5 mm² stranded, 4.5 ft (1.5 m) |
| Body and Couplings | PA |
- NSF approved plastic body is perfect for applications using potable water.
- Even in low flow applications, precision may be achieved over a variety of flow rates thanks to multi-jet architecture.
- Hermetically sealed, magnetically powered register that is totally isolated from the water and doesn't leak or fog.
- Long service life and maintenance-free operation are features of the design.
- The meter is shielded from particle harm by an integrated strainer.
- Coupling adapters that are included make installation easier.
- Remote flow totalization is possible thanks to pulsed output proportional to flow.
