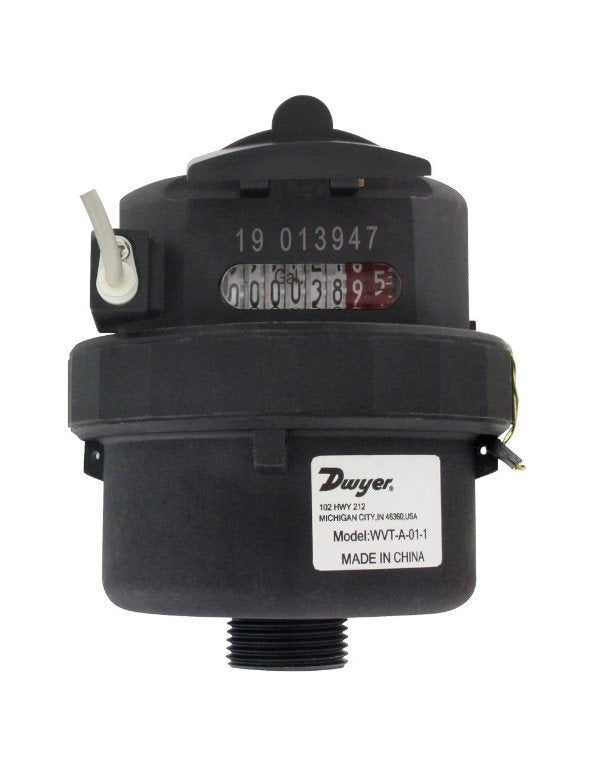

Dwyer WVT-A-02-1 | Rotary Piston Water Meter | 3/4" NPT, 0.05 gal/pulse
The Dwyer WVT-A-02-1 is a 3/4" NPT plastic rotary piston water meter with a 0.05 gal/pulse output for flow verification and totalising. Built from polymer and stainless steel, the WVT-A-02-1 can be fitted vertically or horizontally, with adapter couplings supplied to change BSPP threads to NPT.
- WVT-A-02-1 accuracy: ±2% at nominal flow, ±5% at transitional flow
- Rated to 150 psi (1034 kPa) and 122°F (50°C) at 3/4" NPT
- Wetted materials on WVT-A-02-1: ABS, POM, stainless steel and Buna-N
- 0.05 gal/pulse output, 0.01 A @ 24 VAC/DC, 5 ft (1.5 m) colour-coded leads (WVT-A-02-1)
- Weight 1.34 lb (0.6 kg)
- Specifications
- Features
- Downloads
| Part Number | WVT-A-02-1 |
| Brand | Dwyer |
| Type | Rotary piston (vertical) water meter |
| Pulse Output | 0.05 gal/pulse |
| Accuracy | ±2% nominal flow; ±5% transitional flow |
| Wetted Materials | ABS, POM, stainless steel, Buna-N |
| Mounting | Horizontal or vertical |
| Weight | 1.34 lb (0.6 kg) |
| Max Pressure | 150 psi (1034 kPa) |
| Pulse Rating | 0.01 A @ 24 VAC/DC |
| Lead Wires | 3.5 mm² stranded, colour-coded, 5 ft (1.5 m) |
| Max Temperature | 122 °F (50 °C) |
| Couplings | Adapters from BSPP to NPT included |
| Connection | 3/4" NPT |
- Precise measurement of flow in both horizontal and vertical directions.
- Materials made of polymers resist rust and chemical deterioration.
- Pulse output for keeping track of flow.
- The meter is protected against backflow by a one-way valve.
