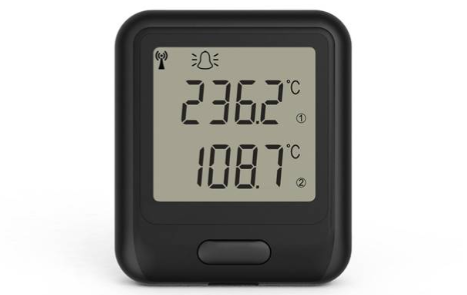

EasyLog | EL-WiFi-21CFR-DTC 21CFR WiFi Dual Channel Thermocouple Probe Data Logging Sensor
This WiFi-enabled dual channel data logger can remotely monitor an environment using two inter-changeable J, K or T type thermocouples. Supplied with two K Type probes, its measurement range out of the box measures from 0 to 200°C (32 to 392°F). Data is uploaded periodically using a standard WiFi network without the need to physically collect and connect the unit to a PC. Data is streamed wirelessly to the EasyLog 21CFR Cloud.
The device will store data internally if it loses WiFi connection and automatically uploads it to the Cloud once reconnected.
- Specifications
- Features
- Downloads
| Accuracy | +/-1.5°C |
| Battery Life | 6 Months |
| Logging Rate | User selectable between 10 seconds and 12 hours |
| Measurement Range (Temp) | -270°C to +400°C |
| Type | Display |
| Type | WiFi |
• Can be installed as part of a 21CFR compliant system with additional controls including permission-based use, authority level sign-off and full system audit
• Dual channel recording through two external K-Type Thermocouple Probes (supplied) 0 to +200°C (+32°F to +392°F), for details see TC probes datasheet
• Thermocouple probe temperature measurement range -270 to +1372°C (-454 to +2501°F) (allows interchangeable probes)
• Easy sensor set-up using free 21CFR WiFi Sensor Software
• Wirelessly stream and view data on the 21CFR Cloud
• Configurable high and low alarms with indicator
