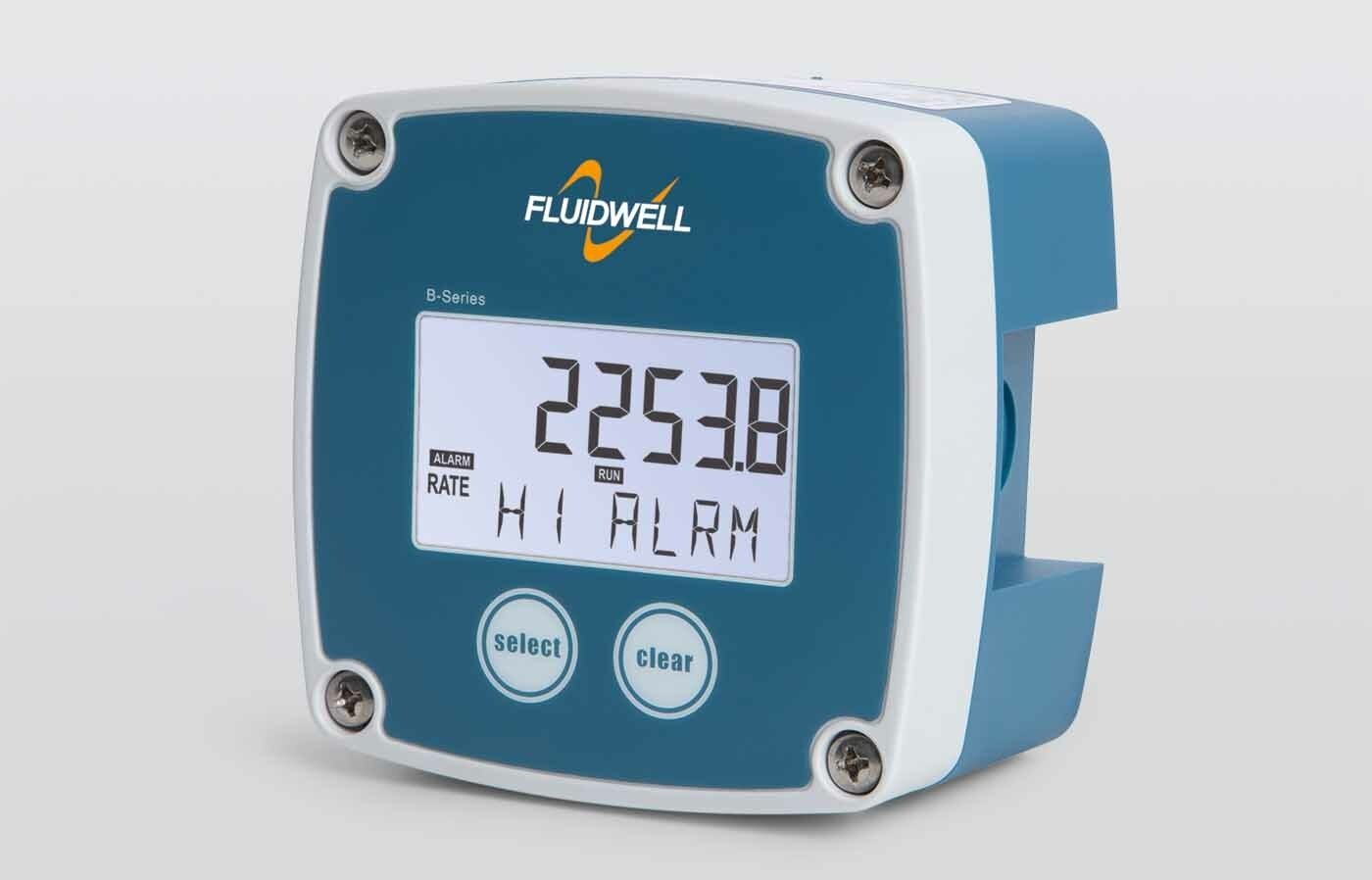

Fluidwell B-ALERT | Basic Flow rate Monitor / Totalizer | with alarm / pulse output
The B-Alert is a flow rate indicator / totalizer with continuous flow rate monitoring feature. It has one low flow rate and one high flow rate alarm value. The display shows flow rate, total, accumulated total and alarm messages. Typical use: Basic flow rate monitoring with a precise calculation over the full measurement range, where re-transmission of the totalizer and monitoring of the flow rate function is required.
Key features
- Compact design.
- Displays instantaneous flow rate, total, accumulated total and alarm messages.
- Two alarm values can be entered: low and high flow rate alarm.
- Durable IP65 (Type 4X) field, wall or meter mount enclosure.
- One 20mm (0.79") and two 16mm(0.63") knock-out hole cable entries.
- “Know one, know them all” configuration structure.
- Easy reading and programming with clear alphanumerical display.
- Specifications
- Features
- Downloads
| Part Number | B-ALERT |
| Brand | Fluidwell |
| Product Type | Flow rate Monitor / Totalizer |
| Enclosure / Area | Basic |
| Signal Inputs - Flowmeter Inputs | Basic types of flowmeter signals: Namur, Reed-switch, NPN, PNP and Sine wave (coil). |
| Supply - Power Supply | A single 3,6V lithium AA battery.; 10 – 30V DC. |
| Supply - Sensor Supply | 8.2V DC. |
| Signal Outputs - Pulse Outputs | Function: Two configurable pulse outputs according to accumulated total (e.g. a pulse every 3.25 gallons). Frequency: User selectable: Off, Long (5Hz/100msec), Intermediate (33Hz/15ms), Short (100Hz/5msec).; Type: Two passive transistor output (NPN) - not isolated. |
| Signal Outputs - Alarm Outputs | Function: Two configurable alarm outputs for low or high flow rate alarms.; Type: Two passive transistor output (NPN) - not isolated. |
- small-scale layout.
- shows the alert messages, total, accumulated total, and the flow rate in real time.
- It is possible to enter the low and high flow rate alarm values.
- Sturdy IP65 (Type 4X) enclosure for a field, wall, or meter.
- Cable entry with one 20 mm (0.79") and two 16 mm (0.63") knock-out holes.
- "Know one, know them all" hierarchy of configurations.
- Simple programming and reading with a readable alphanumeric display.
- Clearly visible 7mm (0.3") alphanumeric and 12mm (0.5") numeric digits.
- LED backlight that is bright.
- Run totals and settings are automatically backed up.
- A 10–30V DC power source and a lithium AA battery.
- Sensor power: 8.2 volts DC.
