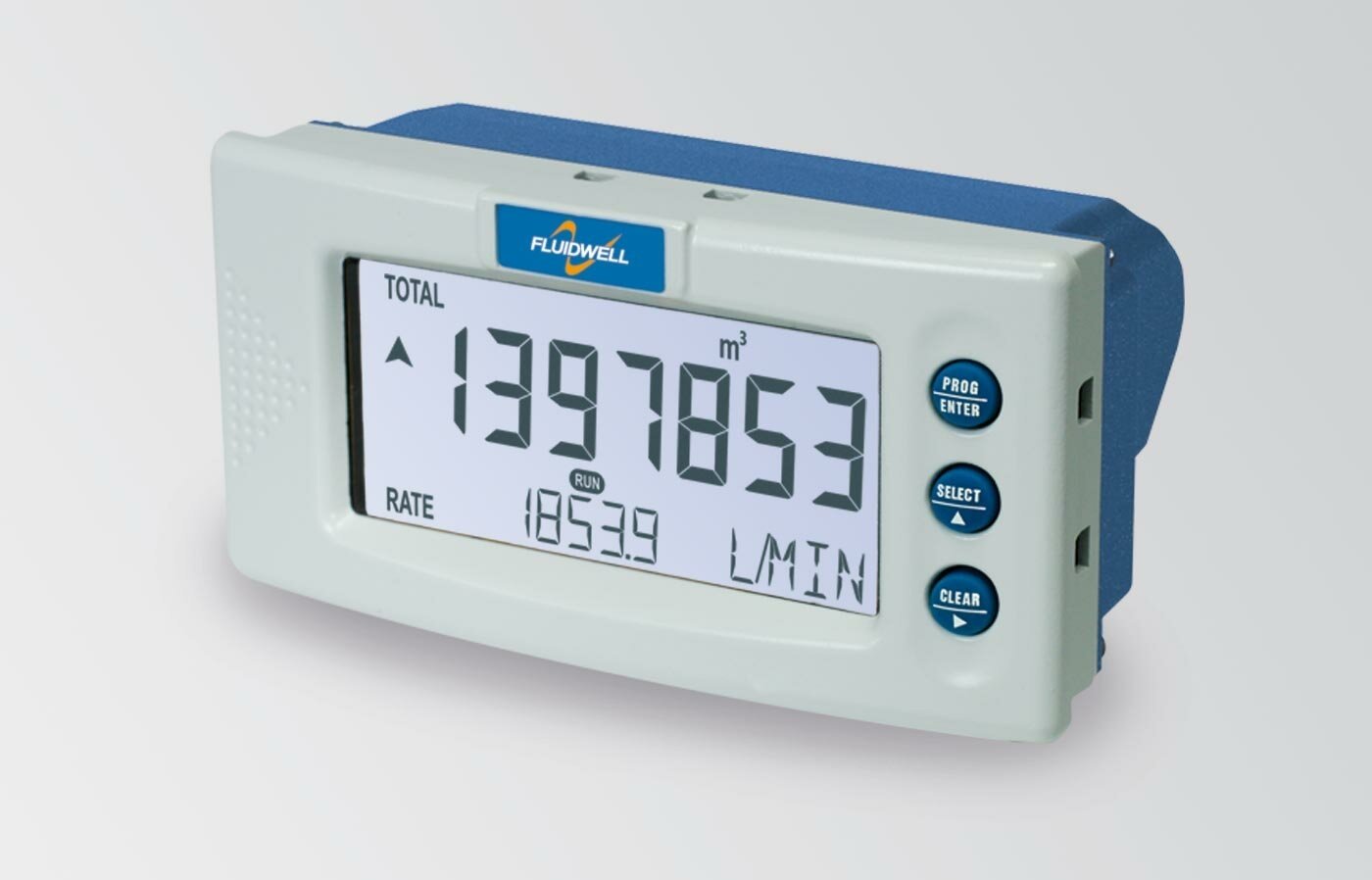

Fluidwell D016 | DIN Panel Mount Flow rate Indicator / Totalizer | with linearization and pulse signal output, ambient -40°C to +70°C
The D016 is a panel mount flow rate indicator / totalizer with linearization to display the actual flow rate, total and accumulated total. The total can be reset to zero by pressing the CLEAR button twice. The eleven digit accumulated total however can not be reset to zero.
Key features
- Displays flow rate, total and accumulated total.
- Eight point linearization of the flowcurve - with interpolation.
- Large 17mm (0.67") digits for flow rate or total.
- Selectable on-screen engineering units; volumetric or mass.
- Ability to process all types of pulse flowmeter signals.
- Auto backup of settings and running totals.
- Ambient temperature: -40°C to +70°C (-40°F to 158°F).
- Specifications
- Features
- Downloads
| Part Number | D016 |
| Brand | Fluidwell |
| Product Type | Flow rate Indicator / Totalizer |
| Enclosure / Area | DIN Panel mount |
| Ambient Temperature | -40 °C to +70 °C (-40 to 158 °F) |
| Signal Inputs - Flowmeter Inputs | Pulse type inputs: Reed-switch, NAMUR, NPN/PNP pulse, Sine wave (coil), active pulse signal. |
| Supply - Power Supply | Basic: 8 - 30V DC (no real sensor supply).; Long life Lithium battery.; 24V AC/DC + sensor supply.; 115 – 230V AC + sensor supply. |
| Supply - Sensor Supply | 1.2 / 3V DC.; 8.2, 12 & 24V DC. |
| Signal Outputs - Pulse Outputs | Function: Scaled pulse output according to linearised accumulated total (e.g. one pulse every 3.25 gallons). Max. frequency: 500Hz. Adjustable pulse length from 1 msec. to 10 seconds.; Type: One passive signal output, an active signal output or a robust, highly isolated (NO/NC) relay. |
- shows the total, accumulated total, and flow rate.
- The flowcurve was linearized in eight points using interpolation.
- Large flow rate or total digits measuring 17 mm (0.67").
- Volumetric or mass engineering units are selectable on the screen.
- the capacity to handle any kind of pulse flowmeter signal.
- Run totals and settings are automatically backed up.
- From -40°C to +80°C (40°F to 176°F) is the ambient temperature.
- Backlighting with LEDs available.
- Simple setup with readable alphanumeric text.
- Aluminum DIN front panel measuring 144 x 72 mm (5.67" x 2.83") in accordance with IEC 61554 / DIN 43700.
