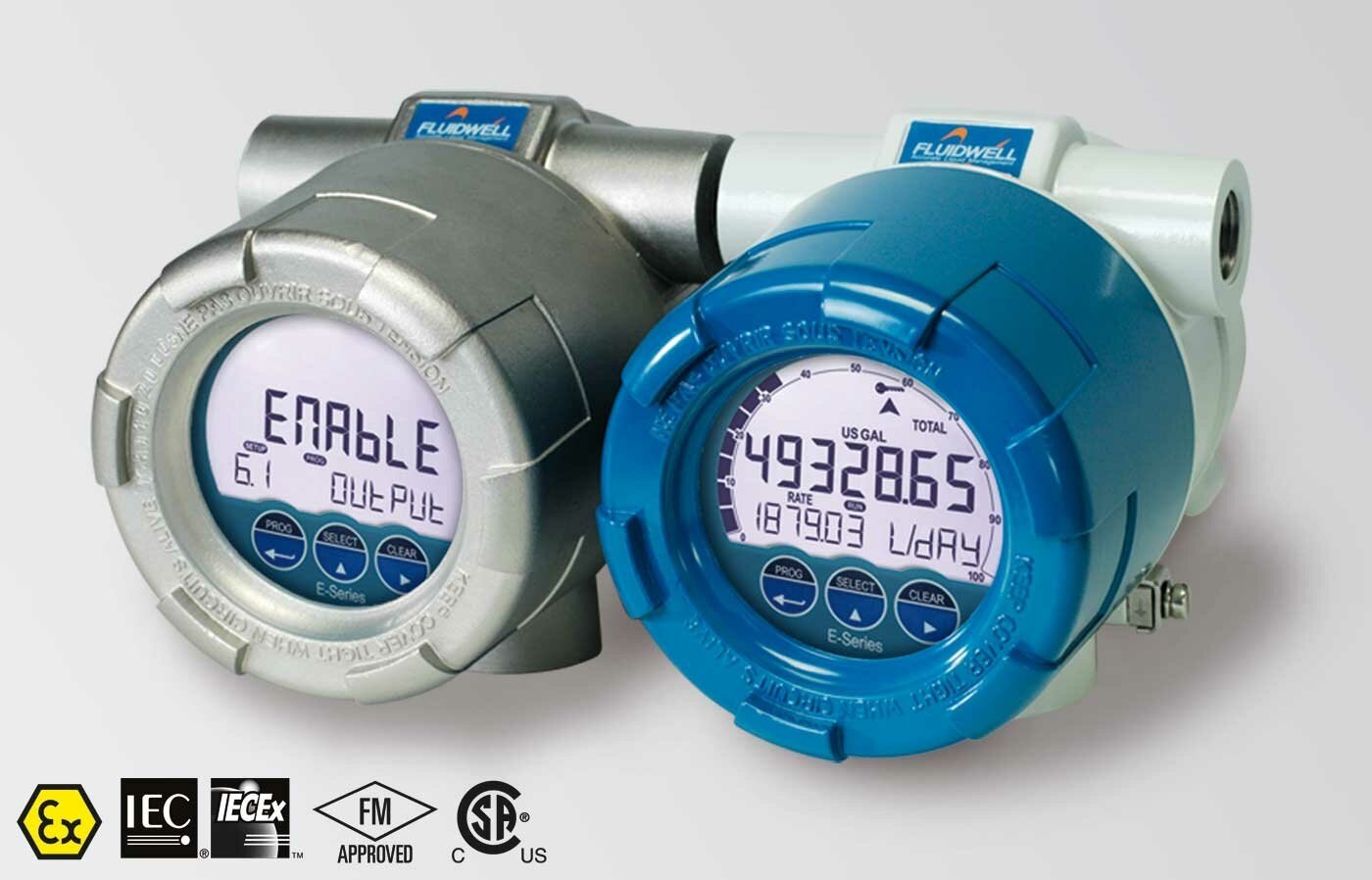

Fluidwell E112 | Explosion proof Flow Logger / Totalizer | with linearization, analog and pulse outputs, ambient -40°C to +70°C
The E112 is a popular model in our range of explosion proof flow rate indicator / totalizer. In addition to the average K-Factor, 15 linearization points can be entered. The unit will interpolate between these points greatly enhancing accuracy in any flow range. Typical use: Flow measurement with mechanical flowmeters where a precise calculation over the full measurement range is required.
Key features
- Explosion proof according ATEX, IECEx and CSA C-US.
- Aluminum or high grade stainless steel Ex d enclosure.
- Easy installation with the spacious chamber and plug & play connectors.
- Cost saving with an easy to install, 1” NPT thread for direct flowmeter mounting.
- Key information at a glance as the display shows flow rate, total, accumulated total, measuring units and a flow rate indicating speedometer.
- 15 point linearization of the flow curve - with interpolation.
- Easy K-factor and engineering unit configuration for volumetric or mass. Learn more with this interactive tutorial.
- Specifications
- Features
- Downloads
| Part Number | E112 |
| Brand | Fluidwell |
| Product Type | Flow Logger / Totalizer |
| Enclosure / Area | Explosion proof |
| Ambient Temperature | -40 °C to +70 °C (-40 to 158 °F) |
| Signal Inputs - Flowmeter Inputs | Pulse type inputs: Reed-switch, NAMUR, NPN/PNP pulse, Sine wave (coil), active pulse signal. |
| Supply - Power Supply | Long life Lithium battery.; 4 – 20mA. Output loop-powered.; 9 – 27V DC. |
| Supply - Sensor Supply | 3, 8.2, 12, 24V DC. |
| Signal Inputs - Status Inputs | Remote control: external input for clearing total or to disable manual clearing by the keypad. |
| Signal Outputs - Pulse Outputs | Function: Scaled pulse output according to linearized accumulated total (e.g. a pulse every 3.25 gallons) and unscaled pulse input retransmission. Max. frequency: 500Hz. Retransmission: Minimum pulse duration: 50µs, Adjustable pulse length from 1 msec. Up to 10 seconds.; Type: One passive NPN transistor and one isolated electro-mechanical relay. |
| Signal Outputs - Analog Outputs | Function: Re-transmitting the linearized flow rate - the output can be scaled to any range (e.g. 200 L/min to 1200 L/min).; Type: One galvanically isolated, loop powered 4 – 20mA output. |
| Communication | Function: Reading display information, clear total, reading / writing all configuration settings and data log extraction. Type: RS232, RS485 2-wire Modbus RTU or Local USB. Remote configuration via free downloadable remote configuration tool (see dropdown download above). HART communication is available with the E018 Flow rate Monitor / Totalizer. |
| Hazardous Area - Explosion Proof | ATEX: Gas: II 2 G Ex db IIC T6 Gb. Dust: II 2 D Ex tb IIIC T85 °C Db.; IECEX: Gas: Ex db IIC T6 Gb. Dust: Ex tb IIIC T85 °C Db.; CSA C-US: XP (Explosion-proof): Class I, Division 1, Groups A, B, C, D. DIP (Dust-Ignition-proof): Class II, Div. 1, Groups E, F, & G T85 °C; Class III. Gas: Class I, Zone 1, AEx db IIC T6 Gb. Dust: Zone 21, AEx tb IIIC T85 °C Db. |
- In accordance with ATEX, IECEx, FM, and CSA C-US, explosion proof.
- Ex terior enclosure made of premium stainless steel or aluminum.
- Plug and play connectors and a roomy chamber make installation simple.
- Installing a direct flowmeter mounting nozzle with a 1" NPT thread is simple and saves money.
- The display provides important details in a look, including measuring units, flow rate, total, and accumulated total, as well as a flow rate-indicating speedometer.
- The flow curve was linearized to 15 points using interpolation.
- Simple engineering unit setup with K-factor for mass or volumetric measurements. Use this interactive tutorial to learn more.
- 11-digit cumulative total and 7-digit flow rate/total.
- LED backlight that is bright.
- The total for the current day (Daily total), the total for the previous day (both non-resettable), and the total for the last 15 days can be shown.
