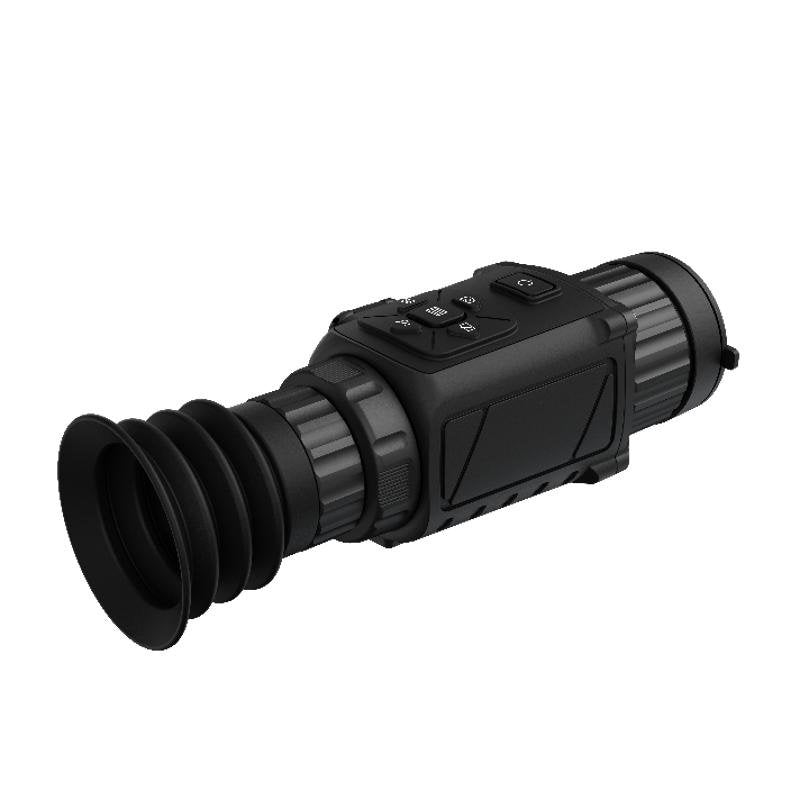

HIKMICRO THUNDER Pro TE25 | Thermal Image Scope | 256 × 192, 25 mm, 1200 m
The THUNDER Pro TE25 uses the same 256 × 192 detector as the TE19 but with a 25 mm lens, narrowing the view to 7.03° × 5.39° and extending detection to 1200 m. Its OLED panel stays clear in poor visibility such as fog, smoke and camouflage.
Key features
- 25 mm focal length
- 1200 m detection range
- 7.03° × 5.39° field of view
- 0.48 mrad IFOV
- 1024 × 768 OLED display
- Specifications
- Features
- Downloads
| Part Number | THUNDER Pro TE25 |
| Brand | HIKMICRO |
| Field of View (FOV) | 7.03° × 5.39° |
| Focal Length | 25 mm (0.984 in) |
| NETD | Less than 35 mK (@25 °C),F#=1.0 |
| Detection | 1200 m |
| Image Sensor | VOx Uncooled Focal Plane Arrays |
| Spatial Resolution (IFOV) | 0.48 mrad |
| Pixel Interval | 12 µm |
| Response Waveband | 8 µm to 14 µm |
| Frame Rate | 25 Hz |
| Max. Resolution | 256 × 192 (49,152 pixels) |
- Advanced Imaging Sensor
- Long Detection Range
- High Image Quality
- Large OLED Display
- Optional Reticle Types
- Make zeroing easier
- Replaceable Batteries
- High Shock Resistance
- IP67 Waterproof Rated
