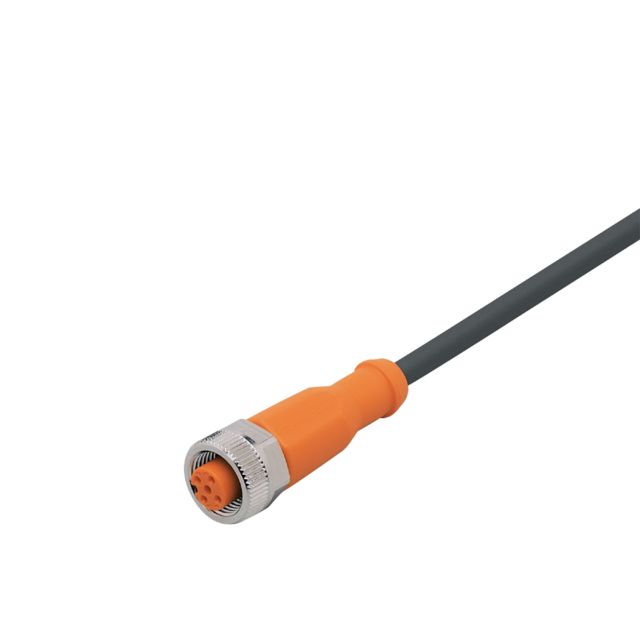

ifm EVC072, Straight Female 1 way M12 to Unterminated Sensor Actuator Cable, 10m

Part Number : EVC072

Availability: Sold out

Detailed Description
Specifications

The ifm electronic connecting cable with socket is designed for exceptional performance in demanding environments. Suitable for a variety of applications, its robust construction includes a TPU housing and FKM sealing, ensuring durability and resilience. This cable is engineered to be free from silicone and halogen, making it an ideal choice for sensitive applications. With multiple protection ratings, including IP65, IP67, IP68, and IP69K, it safeguards against dust and moisture. The inclusion of gold-plated contacts ensures superior connectivity, while the 10m length provides versatility in installation. Its drag chain suitability and capacity for extensive bending cycles make it perfect for dynamic applications. The combination of high-quality materials and thoughtful design culminates in a product that meets the rigorous demands of modern industrial use.

Resistant to oils and coolants
Permanent and reliable sealing even when mounted without tools
High protection rating for the requirements of harsh industrial environments
Vibration and shock resistant thanks to coupling ring with locking mechanism
Mechanical end stop to protect the O-ring from destruction

Brand	ifm
Series	EVC
Cross Sectional Area	0.34 mm²
Number of Cores	5
Sheath Colour	Black
Sheath Material	Polyurethane PUR
Length	10m
Connector 1 Gender	Female
Connector 1	M12
Connector 1 Number of Contacts	1
Connector 1 Orientation	Straight
Connector 2	Unterminated
