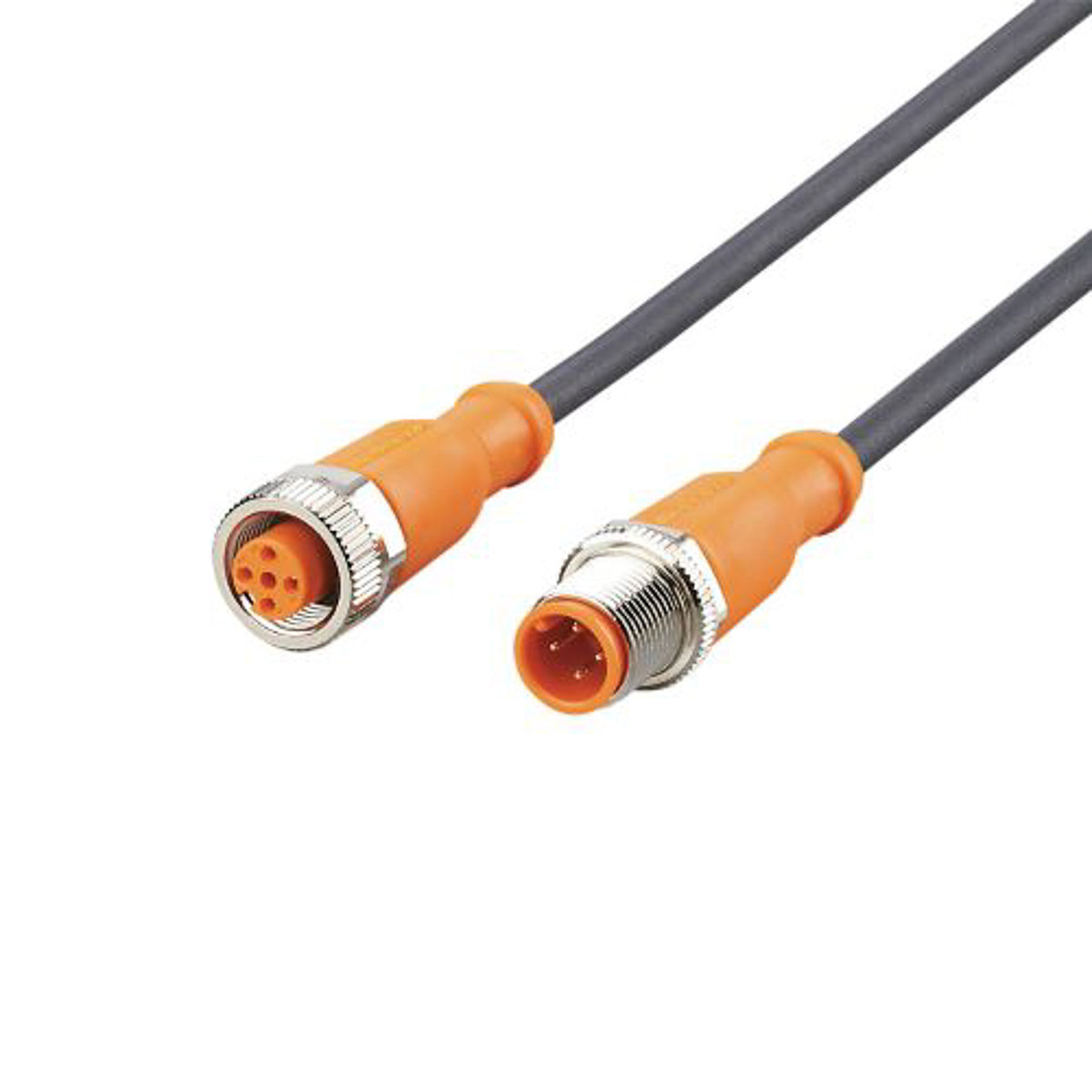

ifm EVC108, Female 4 way M12 to Male 5 way M12 Sensor Actuator Cable, 10m

Name: ifm EVC108, Female 4 way M12 to Male 5 way M12 Sensor Actuator Cable, 10m
Brand: ifm
SKU: EVC108
Availability: OutOfStock

Part Number : EVC108

Availability: Sold out

Detailed Description
Specifications

Jumper cables feature a plug and a socket. They are used for the connection of sensors to splitter boxes and modules.
They ensure reliable and permanent sealing of the sensor and splitter connections even when mounted without tools. The integrated end stop protects the O-ring against destruction caused by over-tightening the nut. Even in harsh industrial environments, the connectors are protected against unintended loosening by a special vibration protection. Some types are fitted with highly visible LEDs for operation and switching status indication.

Connection technology meets the M12 and M8 standard
Reliable sealing even when mounted without tools
High protection rating due to the use of a profiled sealing ring
Sawtooth design protects against shock and vibration
LEDs clearly visible even in cases of high light exposure

Resistant to oils and coolants
Permanent, reliable sealing even when mounted without tools
High protection rating for the requirements of harsh industrial environments
Vibration and shock resistant thanks to coupling ring with locking mechanism
Mechanical end stop to protect the O-ring from destruction

Brand	ifm
Series	EVC
Cross Sectional Area	0.34 mm²
Number of Cores	4
Length	10m
Sheath Colour	Black
Connector 1 Number of Contacts	4
Connector 1	M12
Connector 1 Gender	Female
Connector 2 Housing Gender	Female
Connector 2	M12
Connector 2 Number of Contacts	5
Connector 2 Gender	Male
Voltage Rating	250, 300 V
Current Rating	4 A
IP Rating	IP65, IP67, IP68, IP69K
Operating Temperature Range	-25 → +90 °C
Minimum Bend Radius	10 x cable diameter
American Wire Gauge	22 AWG
Connector 1 Housing Gender	Male
Outer Diameter	4.9mm
