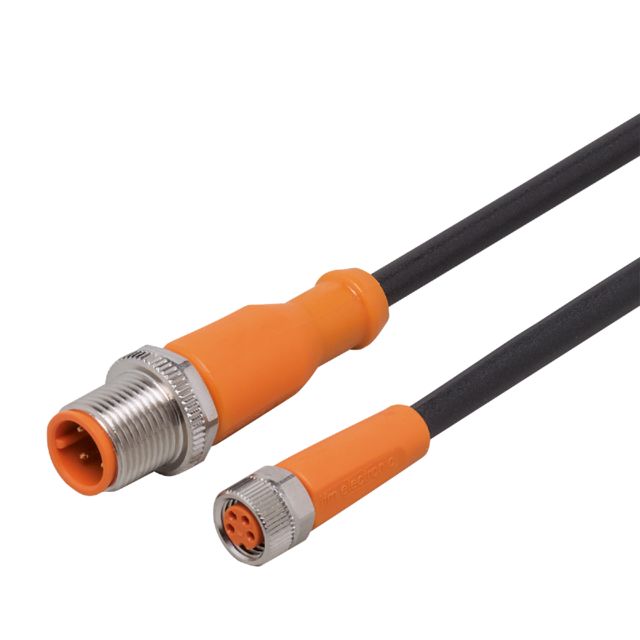

ifm EVC241, Straight Male 1 way M12 to Straight Female 1 way M8 Sensor Actuator Cable, 600mm

Name: ifm EVC241, Straight Male 1 way M12 to Straight Female 1 way M8 Sensor Actuator Cable, 600mm
Brand: ifm
SKU: EVC241
Availability: OutOfStock

Part Number : EVC241

Availability: Sold out

Detailed Description
Specifications

The ifm electronic high-performance connection cable is designed for robustness and reliability in demanding environments. Engineered with special features such as being silicone-free and halogen-free, it ensures compatibility in various applications without compromising on safety. The cable boasts gold-plated contacts and exceptional drag chain suitability, making it ideal for moving installations. With a wide operating temperature range and several protection ratings, it meets the needs of diverse industrial applications. Its mechanical design incorporates TPU housing and a nickel-plated brass nut, ensuring durability and extended longevity, while the precise electrical connections allow for seamless integration with your systems. Whether you require flexibility or strength, this connection cable stands out as a reliable solution.

Resistant to oils and coolants
Permanent and reliable sealing even when mounted without tools
High protection rating for the requirements of harsh industrial environments
Vibration and shock resistant thanks to coupling ring with locking mechanism
Mechanical end stop to protect the O-ring from destruction

Brand	ifm
Series	EVC
Cross Sectional Area	0.34 mm²
Number of Cores	4
Sheath Material	Polyurethane PUR
Sheath Colour	Black
Length	600mm
Connector 1	M12
Connector 1 Number of Contacts	1
Connector 1 Orientation	Straight
Connector 1 Gender	Male
Connector 2 Number of Contacts	1
Connector 2 Gender	Female
Connector 2	M8
Connector 2 Orientation	Straight
