ifm EVC690, Straight Male 4 way M12 to Straight Female 5 way M12 Communication Cable, 4m

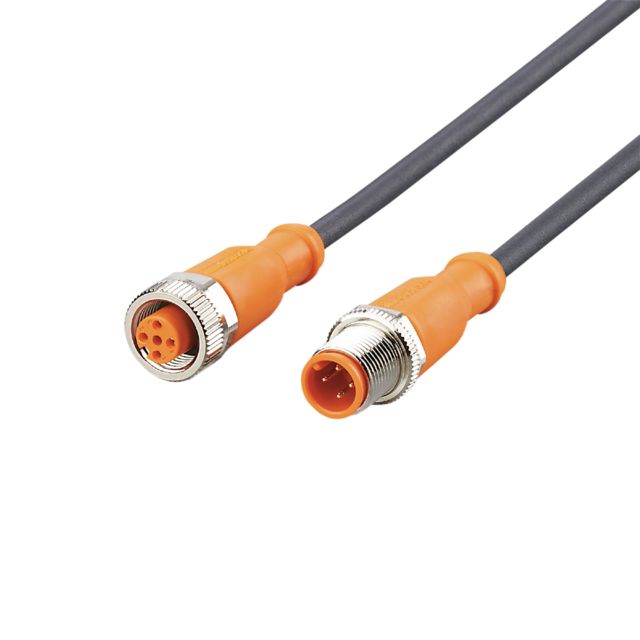

Name: ifm EVC690, Straight Male 4 way M12 to Straight Female 5 way M12 Communication Cable, 4m
Brand: ifm
SKU: EVC690
Availability: OutOfStock

Part Number : EVC690

Availability: in stock

Detailed Description
Specifications
Downloads

The ifm electronic high-performance connection cable is designed specifically for reliable and efficient data transmission in tough environments. Its robust construction ensures durability, making it suitable for a wide range of industrial applications. Featuring a carefully engineered design, it boasts excellent suitability for drag chain applications, plus exceptional flexibility during operation, which can withstand up to 5 million bending cycles. Additionally, the cable's ambient temperature range enhances its usability in diverse conditions, while its protective features ensure reliable performance in harsh settings. The connection cable integrates gold-plated contacts, ensuring optimal conductivity and minimal signal loss, thereby elevating performance standards. With its IP65 to IP69K rating, it is built to resist dust and moisture, making it a dependable choice for any demanding application.

Resistant to oils and coolants
Permanent and reliable sealing even when mounted without tools
High protection rating for the requirements of harsh industrial environments
Vibration and shock resistant thanks to coupling ring with locking mechanism
Mec

Brand	ifm
Series	EVC
Cross Sectional Area	0.34 mm²
Number of Cores	4
Sheath Colour	Black
Length	4m
Sheath Material	Polyurethane PUR
Connector 1 Number of Contacts	4
Connector 1 Orientation	Straight
Connector 1	M12
Connector 1 Gender	Male
Connector 2 Number of Contacts	5
Connector 2	M12
Connector 2 Orientation	Straight
Connector 2 Gender	Female

ifm EVC690, Straight Male 4 way M12 to Straight Female 5 way M12 Communication Cable, 4m
