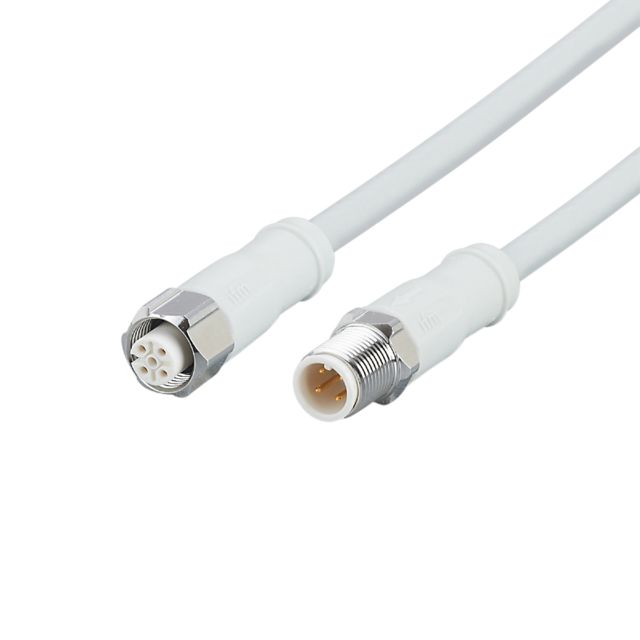

ifm EVF496, Straight Male 4 way M12 to Straight Female 5 way M12 Communication Cable, 20m

Name: ifm EVF496, Straight Male 4 way M12 to Straight Female 5 way M12 Communication Cable, 20m
Brand: ifm
SKU: EVF496
Availability: OutOfStock

Part Number : EVF496

Availability: Sold out

Detailed Description
Specifications

The ifm electronic high-performance connection cable is designed for demanding applications in hygiene-sensitive environments, particularly within the food industry. Engineered with robust materials such as halogen-free PP and stainless steel, this product withstands harsh conditions while ensuring exceptional reliability. The innovative design features gold-plated contacts for optimal electrical conductivity, and its IP65, IP67, IP68, and IP69K ratings guarantee protection against dust and water ingress. The cable's flexible nature allows for a bending radius of at least 10 times the cable diameter, making it suitable for dynamic movements. Moreover, withstanding a wide ambient temperature range from -25 to 100 degrees Celsius, the connection cable is ready for any setup, facilitating seamless integration and ensuring maximum performance throughout its service life.

For use in hygienic and wet areas in the food industry
Permanent and reliable sealing even when mounted without tools
Cable sheath made of halogen-free and flame-retardant material
Vibration and shock resistant thanks to coupling ring with locking mechanism
Large cable cross-section for reducing the voltage drop and transferring higher currents

Brand	ifm
Series	EVF
Cross Sectional Area	1 mm²
Number of Cores	4
Sheath Material	Modified Polyphenylene Ether MPPE
Length	20m
Sheath Colour	Grey
Connector 1 Orientation	Straight
Connector 1 Number of Contacts	4
Connector 1 Gender	Male
Connector 1	M12
Connector 2 Orientation	Straight
Connector 2	M12
Connector 2 Gender	Female
Connector 2 Number of Contacts	5
