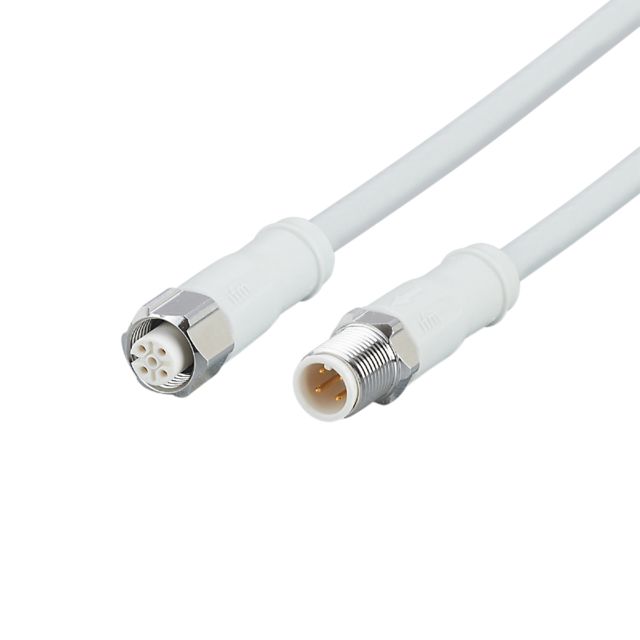

ifm EVF602, Straight Male 4 way M12 to Straight Female 5 way M12 Communication Cable, 2m

Name: ifm EVF602, Straight Male 4 way M12 to Straight Female 5 way M12 Communication Cable, 2m
Brand: ifm
SKU: EVF602
Availability: OutOfStock

Part Number : EVF602

Availability: Sold out

Detailed Description
Specifications

The ifm electronic connection cable is designed to meet the demanding requirements of hygienic and wet areas within the food industry. Fitted with gold-plated contacts and a robust moulded body, this cable ensures reliable performance while remaining free from silicone and halogens. Its versatility is highlighted by its drag chain suitability, making it ideal for applications that require mobility and resistance to harsh conditions. With a temperature range from -25°C to 100°C, and robust protection ratings of IP65 to IP69K, this connection cable excels in environments requiring both durability and safety. The practical design features a stainless steel locking mechanism and a well-considered bending cycle flexibility, ensuring longevity even in the most challenging settings.

For use in hygienic and wet areas in the food industry
Permanent and reliable sealing even when mounted without tools
Cable sheath made of halogen-free and flame-retardant material
Vibration and shock resistant thanks to coupling ring with locking mechanism
Large cable cross-section for reducing the voltage drop and transferring higher currents

Brand	ifm
Series	EVF
Cross Sectional Area	1 mm²
Number of Cores	4
Length	2m
Sheath Material	Modified Polyphenylene Ether MPPE
Sheath Colour	Grey
Connector 1 Orientation	Straight
Connector 1	M12
Connector 1 Gender	Male
Connector 1 Number of Contacts	4
Connector 2 Orientation	Straight
Connector 2 Number of Contacts	5
Connector 2	M12
Connector 2 Gender	Female
