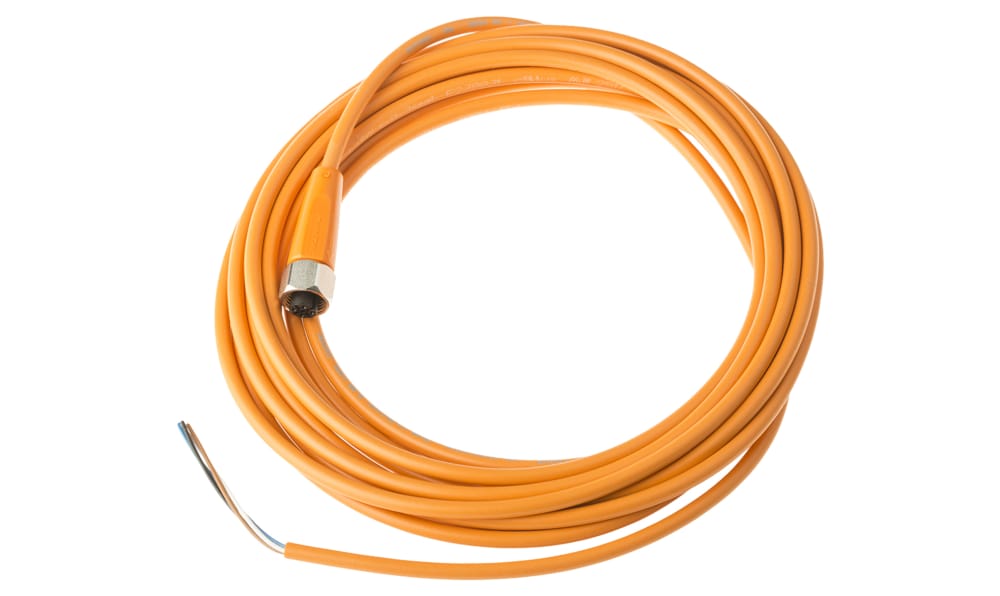

ifm EVT001, Female 4 way M12 to Unterminated Sensor Actuator Cable, 5m

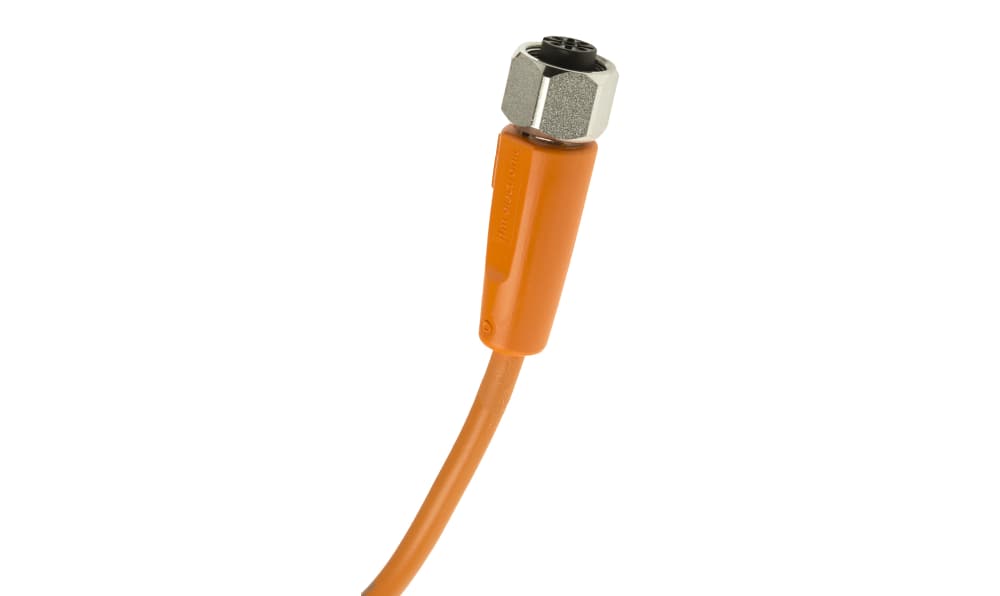

The 4-pole M12 sensor cable EVT001 from ifm is temperature resistant up to 100 °C and therefore especially suited for difficult applications. The EVT001 sensor cable consists of a 5 m PVC cable, a straight M12 socket and gold-plated contacts. The M12 stainless steel coupling nut is secured against shock and vibration due to saw tooth contoured vibration protection. Thanks to the high protection rating IP67/IP68/IP69K and the ECOLAB certificate the silicone-free sensor cable EVT001 is ideally suited for hygienic and wet areas in the food industry.
- Detailed Description
- Specifications
- Features
- Downloads
M12 cable box, 4-core
4-pin, 5 or 10 m long
Silicon-free
Gold-plated contacts
| Brand | ifm |
| Cross Sectional Area | 0.34 mm² |
| Number of Cores | 4 |
| Sheath Colour | Orange |
| Length | 5m |
| Connector 1 | M12 |
| Connector 1 Gender | Female |
| Connector 1 Number of Contacts | 4 |
| Connector 2 | Unterminated |
| Voltage Rating | 250 V ac, 300 V dc |
| Current Rating | 4 A |
| IP Rating | IP65, IP67, IP68, IP69K |
| American Wire Gauge | 22 AWG |
- For use in sanitary and wet areas in the food industry
- Permanent, reliable sealing even when mounted without tools
- Wide operating temperature range and high protection rating
- Vibration and shock resistant thanks to coupling ring with locking mechanism
- Mechanical end stop to protect the O-ring from destruction
