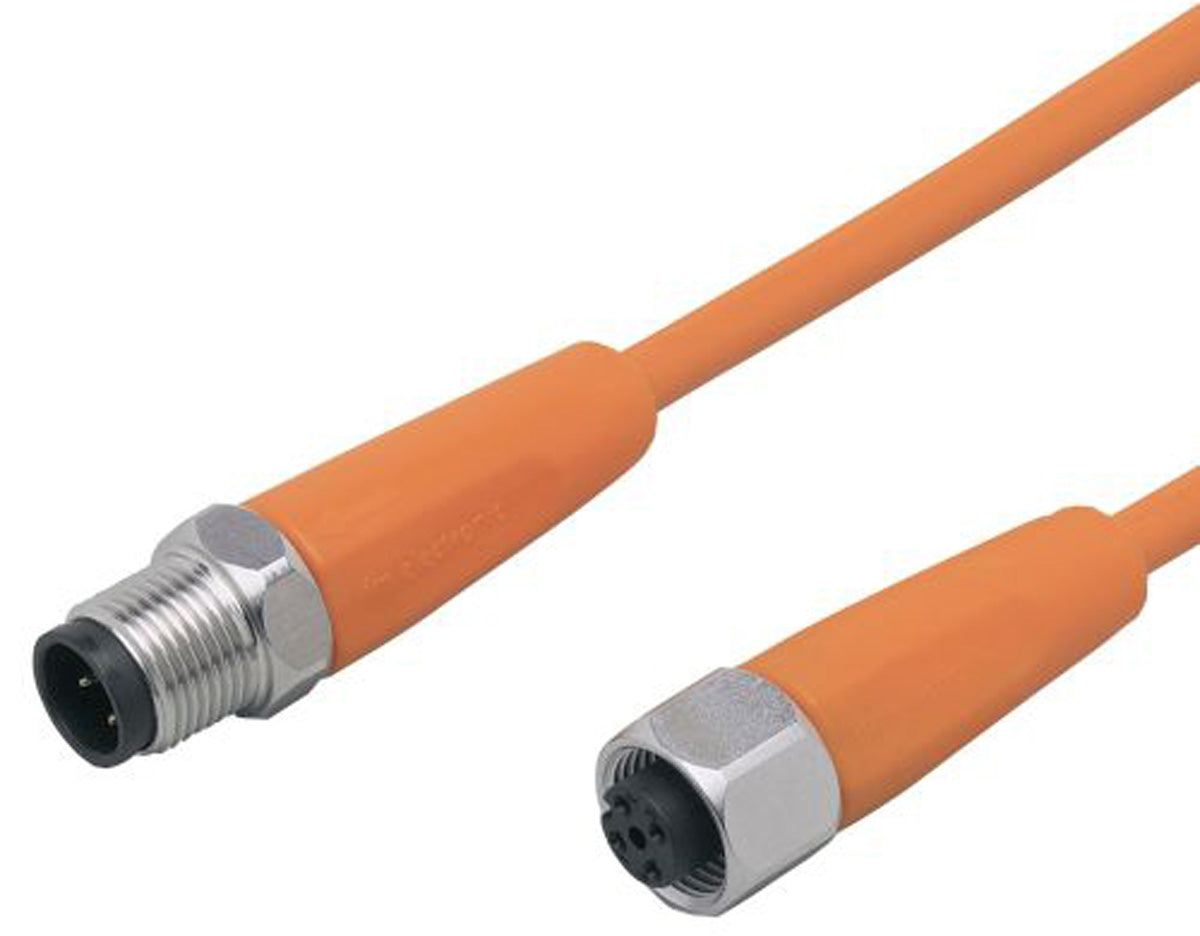

ifm EVT042, Female 4 way M12 to Male 4 way M12 Sensor Actuator Cable, 1m
The 4-pole M12 connection cable EVC042 from ifm with straight M12 socket and straight M12 plug has a 1 m PUR cable. The M12 coupling nut from diecast zinc is secured against shock and vibration due to saw tooth contoured vibration protection. Besides the high protection rating IP67/IP68/IP69K and the gold-plated contacts the EVC042 silicone-free connection cable is distinguished by its temperature resistance up to 100 °C. The EVC042 connection cable is therefore ideal for applications in hygienic and wet areas in the food and pharmaceutical industries.
- Detailed Description
- Specifications
- Features
- Downloads
ifm ecolink Connection Leads
Features and Benefits
| Brand | ifm |
| Number of Cores | 4 |
| Cross Sectional Area | 0.34 mm² |
| Sheath Material | PVC |
| Length | 1m |
| Connector 1 Gender | Female |
| Connector 1 Number of Contacts | 4 |
| Connector 1 | M12 |
| Connector 2 | M12 |
| Connector 2 Number of Contacts | 4 |
| Connector 2 Gender | Male |
| Current Rating | 4 A |
| Voltage Rating | 250 V ac, 300 V dc |
| IP Rating | IP65, IP67, IP68, IP69K |
| Operating Temperature Range | +5 → +100 (Moving) °C, -25 → +100 °C |
- For use in sanitary and wet areas in the food industry
- Permanent, reliable sealing even when mounted without tools
- Wide operating temperature range and high protection rating
- Vibration and shock resistant thanks to coupling ring with locking mechanism
- Mechanical end stop to protect the O-ring from destruction
