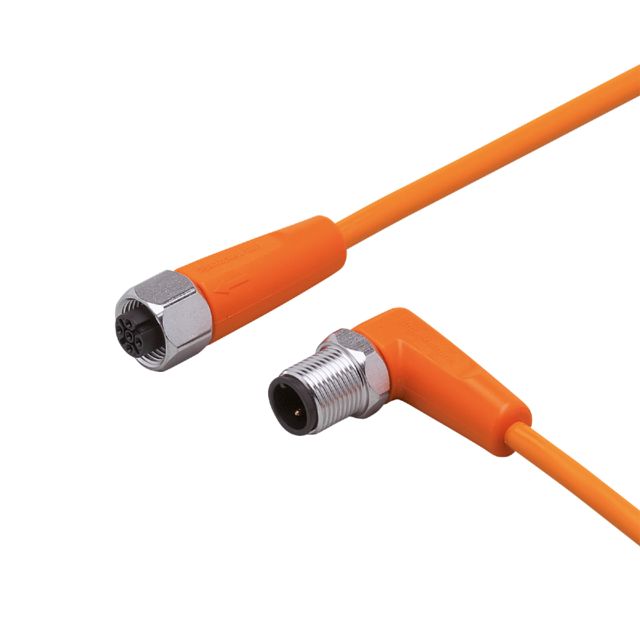

ifm EVT078, Right Angle Male 1 way M12 to Straight Female 1 way M12 Sensor Actuator Cable, 300mm

Name: ifm EVT078, Right Angle Male 1 way M12 to Straight Female 1 way M12 Sensor Actuator Cable, 300mm
Brand: ifm
SKU: EVT078
Availability: OutOfStock

Part Number : EVT078

Availability: Sold out

Detailed Description
Specifications

The ifm electronic Connecting Cable is meticulously designed for applications demanding high reliability in challenging environments. It excels with its silicone free construction and gold plated contacts, ensuring minimal contamination and optimal performance. The robust design also accommodates drag chain usage, making it ideal for dynamic installations. Whether you require mobility or stability, this cable's versatile features complement various application needs.

For use in hygienic and wet areas in the food industry
Permanent and reliable sealing even when mounted without tools
Large operating temperature range and high protection rating
Vibration and shock resistant thanks to coupling ring with locking mechanism
Mechanical end stop to protect the O-ring from destruction

Brand	ifm
Series	EVT
Number of Cores	3
Cross Sectional Area	0.34 mm²
Length	300mm
Sheath Material	Polyvinyl Chloride PVC
Sheath Colour	Orange
Connector 1 Gender	Male
Connector 1 Number of Contacts	1
Connector 1	M12
Connector 1 Orientation	Right Angle
Connector 2 Gender	Female
Connector 2 Orientation	Straight
Connector 2 Number of Contacts	1
Connector 2	M12
