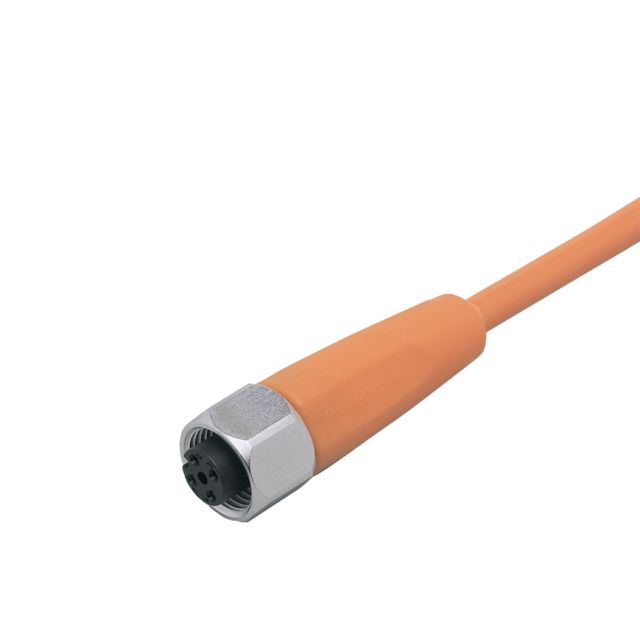

ifm EVT103, Straight Female 1 way M12 to Unterminated Sensor Actuator Cable, 3m

Name: ifm EVT103, Straight Female 1 way M12 to Unterminated Sensor Actuator Cable, 3m
Brand: ifm
SKU: EVT103
Availability: OutOfStock

Part Number : EVT103

Availability: Sold out

Detailed Description
Specifications

The ifm electronic Connecting Cable is meticulously designed for applications demanding high reliability in challenging environments. It excels with its silicone free construction and gold plated contacts, ensuring minimal contamination and optimal performance. The robust design also accommodates drag chain usage, making it ideal for dynamic installations. Whether you require mobility or stability, this cable's versatile features complement various application needs.

For use in hygienic and wet areas in the food industry
Permanent and reliable sealing even when mounted without tools
Large operating temperature range and high protection rating
Vibration and shock resistant thanks to coupling ring with locking mechanism
Mechanical end stop to protect the O-ring from destruction

Brand	ifm
Series	EVT
Cross Sectional Area	0.34 mm²
Number of Cores	4
Sheath Material	Polyvinyl Chloride PVC
Sheath Colour	Orange
Length	3m
Connector 1 Orientation	Straight
Connector 1 Number of Contacts	1
Connector 1 Gender	Female
Connector 1	M12
Connector 2	Unterminated
