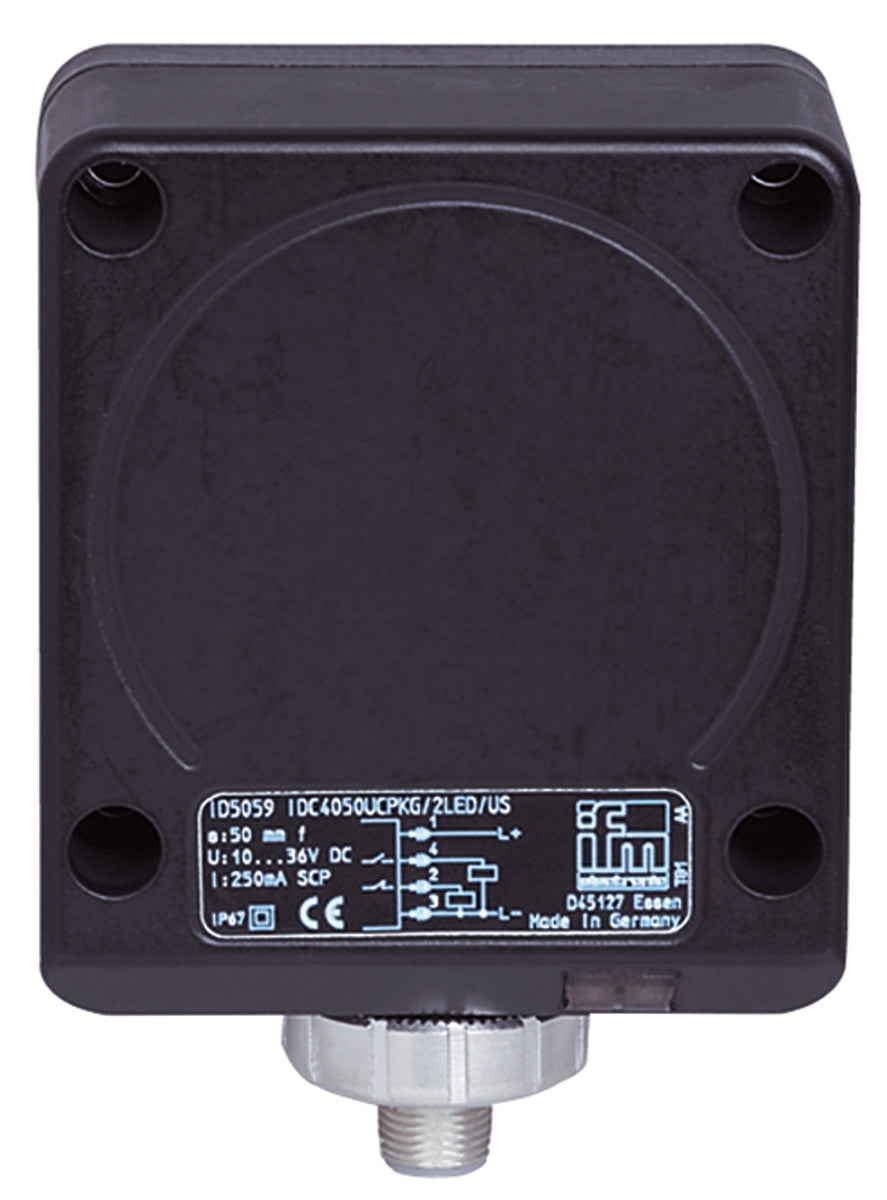

ifm ID5059, Inductive Block Proximity Sensor, M12, 50 mm Detection, PNP NO+NC, 10 → 36 V dc

Client Protection

Dedicated Support

Client Protection

Dedicated Support

ifm ID5059, Inductive Block Proximity Sensor, M12, 50 mm Detection, PNP NO+NC, 10 → 36 V dc

Name: ifm ID5059, Inductive Block Proximity Sensor, M12, 50 mm Detection, PNP NO+NC, 10 → 36 V dc
Brand: ifm
SKU: ID5059
Availability: OutOfStock

Part Number : ID5059

Availability: Sold out

Detailed Description
Specifications

IFM ID5 Rectangular Inductive Proximity Sensors

Inductive sensors are nowadays indispensable for industrial usage. As compared to mechanical switches they offer almost ideal conditions: non-contact operation free from any wear and tear, high switching frequencies and accuracy. In addition, they are insensitive to vibration, dust and moisture. Inductive sensors detect all metals without contact.

M12 connector
Electromagnetic-field immune

Brand	ifm
Thread Size	M12
Sensor Technology	Inductive
Detection Range	50 mm
Body Style	Block
Digital Switching Output Type	PNP
Output Function	NO+NC
Connection Type	M12
Supply Voltage	10 → 36 V dc
Length	112mm
IP Rating	IP67
Mounting Type	Flush
Width	40mm
Housing Material	Brass, Die Cast Zinc, PPE
Maximum DC Voltage	36V
Minimum Operating Temperature	-25°C
Maximum Switching Frequency	70Hz
Switching Current	250 mA
Shielding	Unshielded
Maximum Operating Temperature	+70°C
Depth	92mm
