ifm IE5317, Inductive Threaded Barrel Proximity Sensor, M8, 4 mm Detection, PNP NO, 10 → 36 V dc

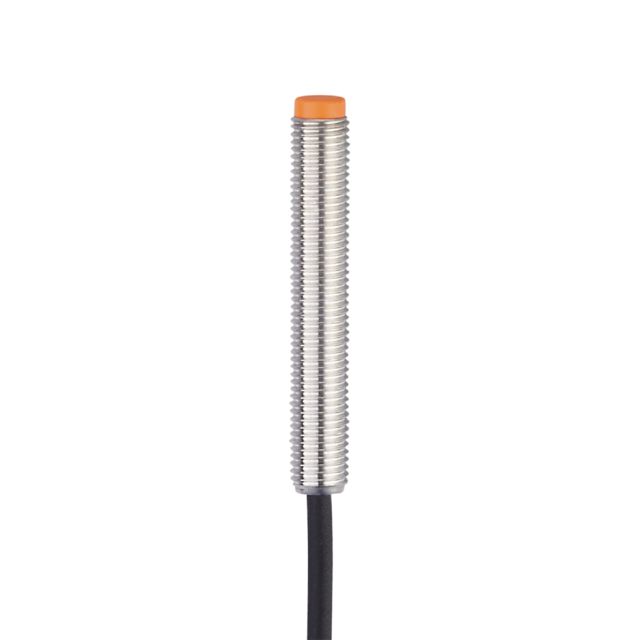

Name: ifm IE5317, Inductive Threaded Barrel Proximity Sensor, M8, 4 mm Detection, PNP NO, 10 → 36 V dc
Brand: ifm
SKU: IE5317
Availability: OutOfStock

Part Number : IE5317

Availability: Sold out

Detailed Description
Specifications

The ifm electronic inductive sensor represents the pinnacle of precision and reliability in industrial applications. Designed to excel in harsh environments, it features a threaded type housing that ensures durability while facilitating easy installation. The sensor’s enhanced sensing range of 4 mm makes it ideal for various applications, providing stable and accurate detection without compromise. Operating within a broad voltage range of 10 to 36 DC, it also boasts low current consumption and built-in reverse polarity protection, enhancing its versatility. With its robust IP67 protection rating, this sensor is well-suited for demanding tasks, ensuring seamless performance even in challenging conditions. The combination of advanced technology and rugged design makes this sensor a key player in optimising automation systems.

For use where space is restricted
Space-saving connection technology
Robust metal housing for use in harsh industrial environments
Very high switching frequency
Long sensing range for high uptime

Brand	ifm
Thread Size	M8
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	4 mm
Output Function	NO
Digital Switching Output Type	PNP
Connection Type	Pre-Cabled
Cable Length	4m
Supply Voltage	10 → 36 V dc
Length	51.5mm
IP Rating	IP67
Mounting Type	Non-Flush
Shielding	Unshielded
Switching Current	200 mA
Switching Frequency	800 Hz
Series	IE5
