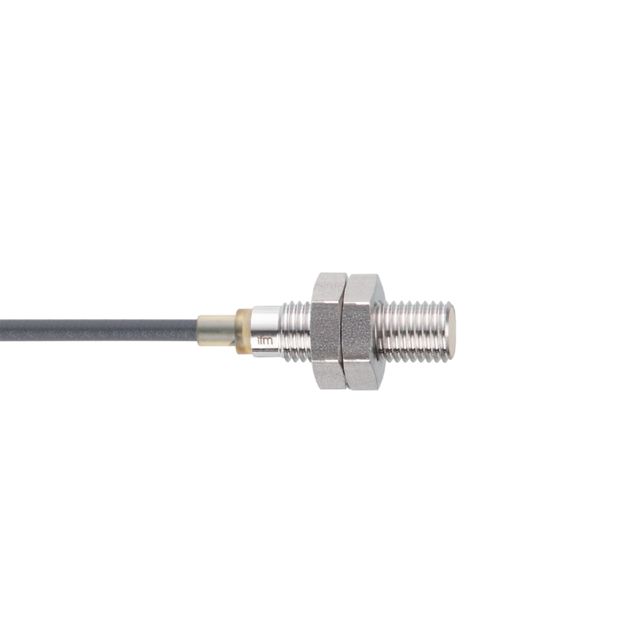

ifm IES238 | Inductive Proximity Sensor | 3 mm, 10 → 30 V dc

Name: ifm IES238 | Inductive Proximity Sensor | 3 mm, 10 → 30 V dc
Brand: ifm
SKU: IES238
Availability: OutOfStock

Part Number : IES238

The ifm IES238 is an inductive proximity sensor with detection range 3 mm, supply voltage 10 → 30 V dc and IP65, IP66, IP67, IP68, IP69K protection.

Thread Size: M8
Sensor Technology: Inductive
Detection Range: 3 mm
Body Style: Threaded Barrel
Digital Switching Output Type: PNP
Output Function: NO
Connection Type: Pre-Cabled
Cable Length: 2m

Availability: in stock

Detailed Description
Specifications
Downloads

The ifm electronic inductive sensor is engineered for precision, delivering exceptional performance in a variety of demanding industrial applications. The robust design of the product ensures reliability and accuracy in sensing tasks, boasting an increased sensing range that is particularly beneficial in mobile and harsh environments. Featuring advanced electrical characteristics, this sensor operates efficiently within a wide range of ambient temperatures, allowing for versatility across different settings. Its compact M8 threaded housing makes it easy to install in tight spaces, while durable materials guarantee long-term performance. Built with safety features including reverse polarity and short-circuit protection, this sensor is perfect for factory automation and complex machinery where performance and protection are paramount.

Suitable for industrial and mobile applications
Suitable for cooling and lubricating applications
High protection rating for the requirements of harsh industrial environments
Flexible use thanks to large operating temperature range
Safe detection due to large sensing range and low sensor tolerances
Reduced storage due to wide range of applications

Brand	ifm
Thread Size	M8
Sensor Technology	Inductive
Detection Range	3 mm
Body Style	Threaded Barrel
Digital Switching Output Type	PNP
Output Function	NO
Connection Type	Pre-Cabled
Cable Length	2m
Supply Voltage	10 → 30 V dc
IP Rating	IP65, IP66, IP67, IP68, IP69K
Length	27.5mm
Mounting Type	Flush
Switching Frequency	1.5 kHz
Shielding	Shielded
Series	IES
Switching Current	100 mA
