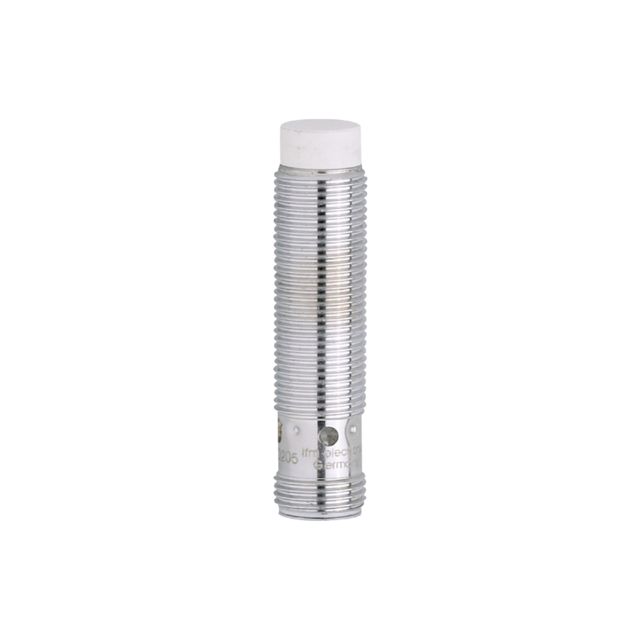

ifm IFC240 | Inductive Proximity Sensor | 4 mm, 10 → 36 V dc

Name: ifm IFC240 | Inductive Proximity Sensor | 4 mm, 10 → 36 V dc
Brand: ifm
SKU: IFC240
Availability: OutOfStock

Part Number : IFC240

The ifm IFC240 is an inductive proximity sensor with detection range 4 mm, supply voltage 10 → 36 V dc and IP68 protection.

Thread Size: M12
Sensor Technology: Inductive
Body Style: Threaded Barrel
Detection Range: 4 mm
Output Function: NO
Digital Switching Output Type: PNP
Connection Type: M12
Supply Voltage: 10 → 36 V dc

Availability: in stock

Detailed Description
Specifications
Downloads

The ifm electronic inductive sensor designed for precision in applications requiring high reliability and durability. With its robust design and IP68 protection class, this sensor excels in harsh environments, including exposure to coolants and lubricants. Its threaded housing and compact dimensions ensure easy integration into various machinery, making it an ideal choice for industrial automation. The sensor’s PNP output function facilitates straightforward connectivity and reliable performance, even in demanding settings. Additionally, it boasts gold-plated contacts for enhanced conductivity and longevity.

For use in machine tools and metalworking
Resistant to oils and coolants
Particularly short housing for use where space is restricted
Clearly visible indication of the switching status
Permanently legible laser type label

Brand	ifm
Thread Size	M12
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	4 mm
Output Function	NO
Digital Switching Output Type	PNP
Connection Type	M12
Supply Voltage	10 → 36 V dc
IP Rating	IP68
Length	50mm
Mounting Type	Non-Flush
Shielding	Unshielded
Series	IFC
Switching Frequency	700 Hz
Switching Current	200 mA
