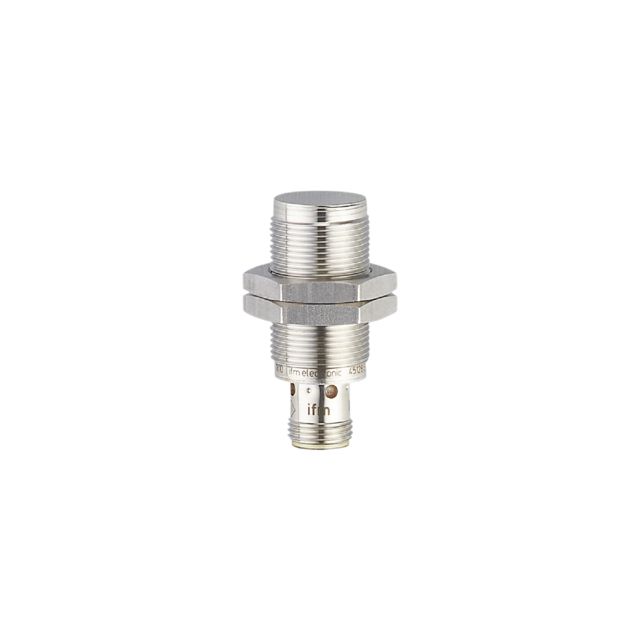

ifm IGT261 | Inductive Proximity Sensor | 10 mm, 10 → 30 V dc

Name: ifm IGT261 | Inductive Proximity Sensor | 10 mm, 10 → 30 V dc
Brand: ifm
SKU: IGT261
Availability: OutOfStock

Part Number : IGT261

The ifm IGT261 is an inductive proximity sensor with detection range 10 mm, supply voltage 10 → 30 V dc and IP65, IP66, IP67, IP68, IP69K protection.

Thread Size: M18
Sensor Technology: Inductive
Body Style: Threaded Barrel
Detection Range: 10 mm
Digital Switching Output Type: PNP
Output Function: NO
Connection Type: M12
Supply Voltage: 10 → 30 V dc

Availability: in stock

Detailed Description
Specifications
Downloads

The ifm electronic Inductive Full Metal Sensor is designed for demanding applications where durability and reliability are essential. This innovative device offers enhanced sensing capabilities, making it ideal for environments exposed to aggressive cleaning agents. With a robust construction of stainless steel and a sensing range of 10 mm, it guarantees consistent performance under various operational conditions. Packed with advanced features such as gold plated contacts and multiple protection classes, this sensor ensures long lasting functionality while achieving reliable measurements.

Robust, high-quality stainless steel design
Compact housing for use where space is restricted
Large operating temperature range up to 100 °C
Easy connection via the tried and tested M12 connector

Brand	ifm
Thread Size	M18
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	10 mm
Digital Switching Output Type	PNP
Output Function	NO
Connection Type	M12
Supply Voltage	10 → 30 V dc
Length	45mm
IP Rating	IP65, IP66, IP67, IP68, IP69K
Mounting Type	Quasi-Flush
Switching Current	100 mA
Shielding	Shielded
Series	IGT
Switching Frequency	200 Hz
