ifm II5321, Inductive Threaded Barrel Proximity Sensor, M30, 15 mm Detection, PNP/NPN NO/NC, 10 → 55 V dc

Name: ifm II5321, Inductive Threaded Barrel Proximity Sensor, M30, 15 mm Detection, PNP/NPN NO/NC, 10 → 55 V dc
Brand: ifm
SKU: II5321
Availability: OutOfStock

Part Number : II5321

Availability: Sold out

Detailed Description
Specifications

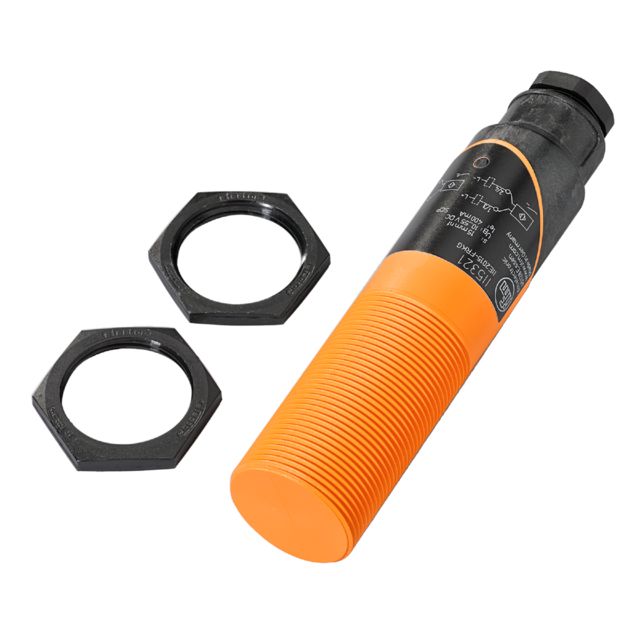

The ifm electronic inductive sensor is engineered for exceptional performance in detecting metallic objects with high precision. Crafted with robust construction, it features a threaded housing that allows for easy installation in various environments. The sensor accommodates both PNP and NPN electrical designs, offering versatility while ensuring reliable operation amidst demanding applications. Its compact dimensions coupled with an operating voltage range of 10 to 55 V DC ensure adaptability across multiple setups. With a sensing range of 15 mm and a protection rating of IP65, this sensor confidently performs in both industrial and outdoor conditions, providing peace of mind in challenging situations.

Output function normally open or normally closed programmable
Wide operating temperature range
Two-wire technology
With terminal chamber that can be rotated by 90°
Large operating voltage range

Brand	ifm
Thread Size	M30
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	15 mm
Output Function	NO/NC
Digital Switching Output Type	PNP/NPN
Connection Type	Screw Terminal
Supply Voltage	10 → 55 V dc
IP Rating	IP65
Length	125mm
Mounting Type	Non-Flush
Switching Current	400 mA
Series	II5
Switching Frequency	200 Hz
Shielding	Unshielded
