ifm IIS236, Inductive Threaded Barrel Proximity Sensor, M30, 22 mm Detection, PNP NC, 10 → 30 V dc

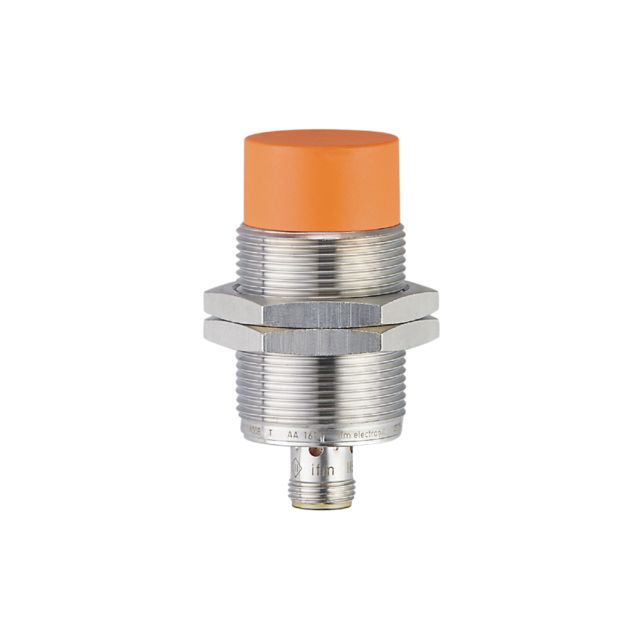

Name: ifm IIS236, Inductive Threaded Barrel Proximity Sensor, M30, 22 mm Detection, PNP NC, 10 → 30 V dc
Brand: ifm
SKU: IIS236
Availability: OutOfStock

Part Number : IIS236

Availability: Sold out

Detailed Description
Specifications

The ifm electronic inductive sensor stands out for its robustness, making it an ideal choice for various industrial applications. Designed to perform efficiently in challenging operational environments, it features a threaded housing that ensures reliable installation and compatibility with standard fittings. This sensor captures the presence of metallic objects within a sensing range of 22 mm, integrating cutting-edge gold-plated contact technology for enhanced durability and performance. With superior protection ratings and comprehensive safety features, including reverse polarity protection, it ensures consistent operation even under demanding conditions. Furthermore, temperature resistances from -40 to 85 degrees Celsius enable it to excel across a broad spectrum of industrial sectors, including factory automation and mobile applications. Its modern, compact design is not only functional but also seamlessly integrates into existing setups, providing precise monitoring and control.

Suitable for industrial and mobile applications
Suitable for cooling and lubricating applications
High protection rating for the requirements of harsh industrial environments
Flexible use thanks to large operating temperature range
Safe detection due to large sensing range and low sensor tolerances
Reduced storage due to wide range of applications

Brand	ifm
Thread Size	M30
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	22 mm
Digital Switching Output Type	PNP
Output Function	NC
Connection Type	M12
Supply Voltage	10 → 30 V dc
Length	60mm
IP Rating	IP65, IP66, IP67, IP68, IP69K
Mounting Type	Non-Flush
Switching Frequency	100 Hz
Switching Current	100 mA
Shielding	Unshielded
Series	IIS
