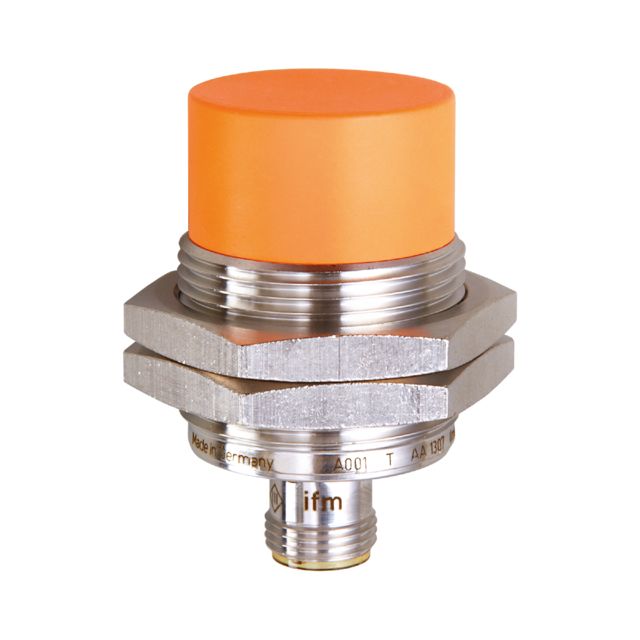

ifm IIS247, Inductive Threaded Barrel Proximity Sensor, M30, 22 mm Detection, PNP NC, 10 → 30 V dc - General Tech Services LLC

Client Protection

Dedicated Support

Client Protection

Dedicated Support

ifm IIS247 | Inductive Proximity Sensor | 22 mm, NC

Name: ifm IIS247 | Inductive Proximity Sensor | 22 mm, NC
Brand: ifm
SKU: IIS247
Availability: OutOfStock

Part Number : IIS247

The ifm IIS247 is an inductive proximity sensor with detection range 22 mm, output function NC and supply voltage 10 → 30 V dc.

Thread Size: M30
Sensor Technology: Inductive
Detection Range: 22 mm
Body Style: Threaded Barrel
Output Function: NC
Digital Switching Output Type: PNP
Connection Type: M12
Supply Voltage: 10 → 30 V dc

Availability: in stock

Detailed Description
Specifications
Downloads

The ifm electronic Inductive Sensor is designed for enhanced performance in industrial applications. Combining precision and robustness, it supports a sensing range that adapts to various operational environments. With a compact threaded housing, this sensor is built to perform reliably under challenging conditions, including extreme temperatures and exposure to liquids. Providing both a normally closed output function and reverse polarity protection, it ensures a seamless integration with your systems while safeguarding against common electrical faults. Its gold plated contacts enhance conductivity, promoting consistent operation.

Suitable for industrial, mobile, cooling and lubricating applications
High protection rating for the requirements of harsh industrial environments
Flexible use thanks to large operating temperature range
Safe detection due to large sensing range and low sensor tolerances
Reduced storage due to wide range of applications

Brand	ifm
Thread Size	M30
Sensor Technology	Inductive
Detection Range	22 mm
Body Style	Threaded Barrel
Output Function	NC
Digital Switching Output Type	PNP
Connection Type	M12
Supply Voltage	10 → 30 V dc
IP Rating	IP65, IP66, IP67, IP68, IP69K
Length	50mm
Mounting Type	Non-Flush
Series	IIS
Switching Current	100 mA
Shielding	Unshielded
Switching Frequency	100 Hz
