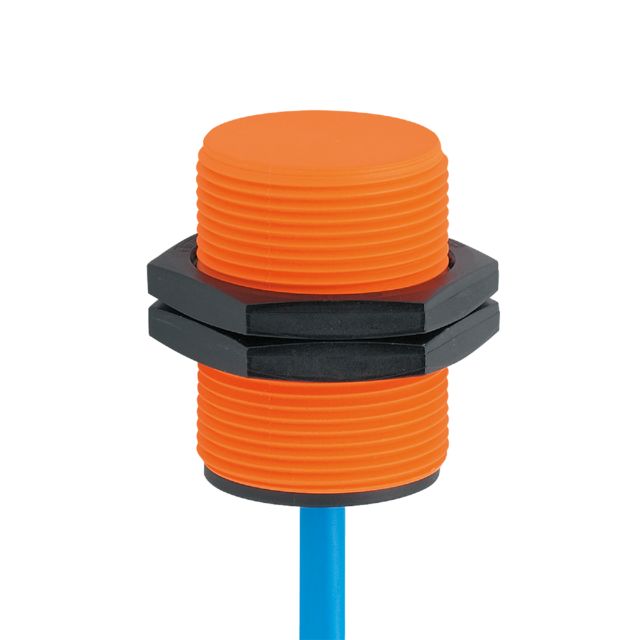

ifm NI5011, Inductive Threaded Barrel Proximity Sensor, M30, 15 mm Detection, NAMUR NC, 7.5 → 30 V dc

Name: ifm NI5011, Inductive Threaded Barrel Proximity Sensor, M30, 15 mm Detection, NAMUR NC, 7.5 → 30 V dc
Brand: ifm
SKU: NI5011
Availability: OutOfStock

Part Number : NI5011

Availability: Sold out

Detailed Description
Specifications

The ifm electronic inductive NAMUR sensor ensures reliable performance in demanding industrial settings. Its robust construction and compact threaded housing facilitate easy integration and installation. Capable of operating across a wide temperature range, it maintains high accuracy and repeatability in challenging conditions. With ATEX and IECEx certifications, it is suitable for hazardous areas, combining precision with safety and durability for diverse applications.

For applications in hazardous areas
For connection to intrinsically safe circuits
Particularly short housing for use where space is restricted
Wide operating temperature range
High protection rating for the requirements of harsh industrial environments

Brand	ifm
Thread Size	M30
Sensor Technology	Inductive
Detection Range	15 mm
Body Style	Threaded Barrel
Output Function	NC
Digital Switching Output Type	NAMUR
Connection Type	Pre-Cabled
Cable Length	10m
Supply Voltage	7.5 → 30 V dc
IP Rating	IP67
Length	41mm
Mounting Type	Non-Flush
Shielding	Unshielded
Switching Current	30 mA
Series	NI
Switching Frequency	200 Hz
