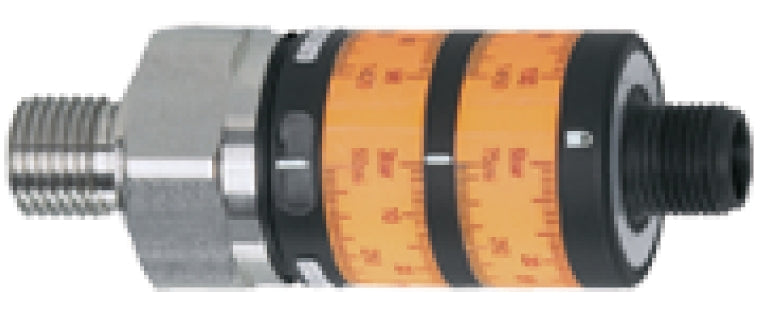

ifm PK7523 | Pressure Sensor | 0bar to 25bar, 0bar to 25bar
The ifm PK7523 is a pressure sensor with pressure range 0bar to 25bar, pressure range 0bar to 25bar and output type 2NO.
- Pressure Reading Type: Relative
- Pressure range: 0bar to 25bar
- Accuracy: <±2.5 %
- Output Type: 2NO
- Media Measured: Gas, Liquid
- Process Connection: G1/4
- Electrical Connection: M12 Connector
- Maximum Current: 500 mA
- Detailed Description
- Specifications
- Downloads
Dual Output Pressure Switch
Quick disconnect
Process connection G1/4 A / M25 I
2 switching outputs
Electrical design: DC PNP
Output: 2 normally open
Switching status 2xLED (yellow)
Non latching short circuit protection
Overload and reverse polarity protection
Operating temperature: -25 → 80 °C
IP rating: IP67
Approvals
| Brand | ifm |
| Pressure Reading Type | Relative |
| Minimum Pressure Reading | 0 bar (0.0 psi) |
| Maximum Pressure Reading | 25 bar (363 psi) |
| Accuracy | <±2.5 % |
| Output Type | 2NO |
| Media Measured | Gas, Liquid |
| Process Connection | G1/4 |
| Electrical Connection | M12 Connector |
| Maximum Current | 500 mA |
| Supply Voltage | 9.6 → 32 V dc |
| Housing Material | FPM, PBT, PC, Stainless Steel |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| IP Rating | IP67 |
| Maximum Operating Temperature | +80 °C (176 °F) |
