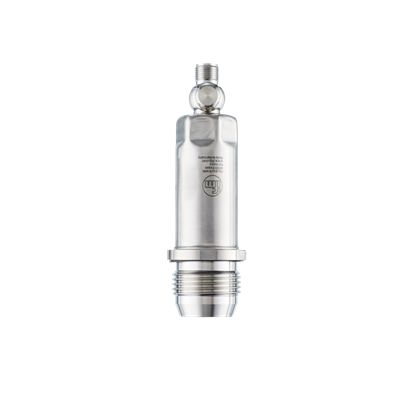

ifm PM1607, PM Series Pressure Sensor, -0.05bar Min, 1bar Max, Analogue Output, Relative Reading

Part Number : PM1607

Availability: Sold out

Detailed Description
Specifications
Downloads

The ifm electronic flush pressure sensor is designed for precision measurement in demanding applications within the food and beverage industry. Featuring a ceramic-capacitive pressure measuring cell, this sensor is engineered to accurately gauge pressure in viscous media and liquids that may contain suspended particles. It supports operational voltages between 18 and 30 DC, ensuring versatility in usage. With a robust construction of stainless steel and an IP69K protection class rating, this sensor is built to withstand harsh environmental conditions, making it ideal for flush mounting requirements.

Gold-plated contacts enhance reliability and performance
Compatible with IO-Link for seamless integration into existing systems
Measuring range of -0.05 to 1 bar caters to a wide variety of applications
Robust design offers exceptional resistance to pressure cycles, rated for up to 100 million cycles

Brand	ifm
Pressure Reading Type	Relative
Minimum Pressure Reading	-0.05bar
Maximum Pressure Reading	1bar
Accuracy	± 0.2
Output Type	Analogue
Series	PM

ifm PM1607, PM Series Pressure Sensor, -0.05bar Min, 1bar Max, Analogue Output, Relative Reading
