ifm SD5600, SD Series Industrial Gas Counter Flow Sensor, 0.8 l/min Min, 250 L/min Max

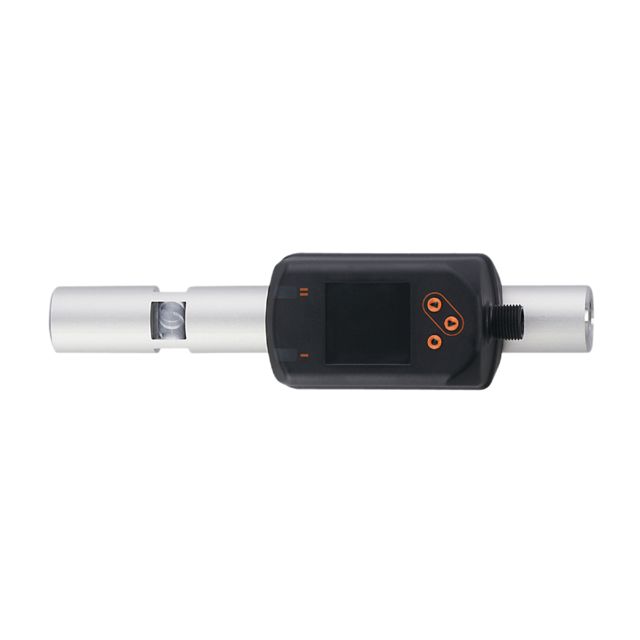

Name: ifm SD5600, SD Series Industrial Gas Counter Flow Sensor, 0.8 l/min Min, 250 L/min Max
Brand: ifm
SKU: SD5600
Availability: OutOfStock

Part Number : SD5600

Availability: Sold out

Detailed Description
Specifications

The ifm electronic Industrial Gas Counter operates with a voltage range of 18 to 30 V DC and has a current consumption of less than 80 mA. It is protected to Class III standards and includes reverse polarity protection with a 1 second power on delay. The device features two digital outputs and one analogue output. The digital outputs are PNP/NPN configurable, supporting both normally open and normally closed functions, with a maximum voltage drop of 2.5 V and a permanent current rating of 150 mA per output.

Precise measurement of flow, consumption, pressure and medium temperature
High accuracy
High repeatability and measurement dynamics
For detecting argon (Ar)
For detecting carbon dioxide (CO2)
For detecting nitrogen (N2) and compressed air
Red/green display for clear identification of the acceptable range
Display can be rotated for optimum alignment
Convenient operation via buttons or parameter setting via IO-Link

Brand	ifm
Device Type	Industrial Gas Counter
Minimum Flow Rate	0.8 l/min
Maximum Flow Rate	250 L/min
Supply Voltage	30 V
Series	SD
