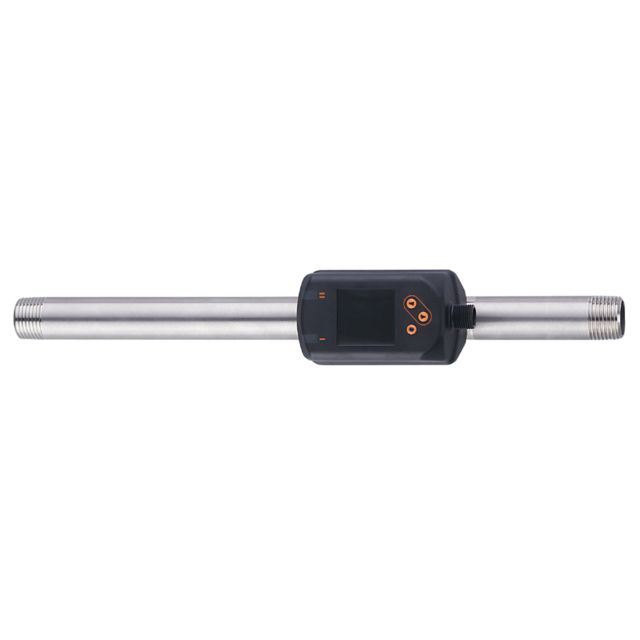

ifm SD6500, Compressed Air Meter Flow Meter for Air

Name: ifm SD6500, Compressed Air Meter Flow Meter for Air
Brand: ifm
SKU: SD6500
Availability: OutOfStock

Part Number : SD6500

Availability: in stock

Detailed Description
Specifications
Downloads

The ifm electronic Compressed Air Meter is a versatile device featuring two digital outputs and one analogue output. It supports various input and output configurations, including switching signals, analogue signals, pulse signals, and IO-Link, all of which are configurable. The electrical design accommodates both PNP and NPN configurations. It provides two digital outputs with a maximum voltage drop of 2.5 V and a permanent current rating of 150 mA per output. The single analogue output delivers a scalable current of 4 to 20 mA and supports a maximum load of 500 Ω. Additionally, the meter includes short-circuit protection with a pulsed type and overload protection to ensure reliable operation.

Precise measurement of flow and consumption
Precise measurement of pressure and medium temperature
High accuracy
High repeatability and measurement dynamics
For detecting compressed air in industrial use
Red or green display for clear identification of the acceptable range
Display can be rotated for optimum alignment
Convenient operation via buttons or parameter setting via IO-Link
