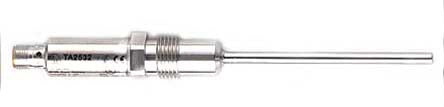

Name: ifm TA2532, PT1000 RTD Sensor, 6mm Dia, 100mm Long, 4 Wire, G1/2, +200°C Max
Brand: ifm
SKU: TA2532
Availability: OutOfStock

ifm TA2532, PT1000 RTD Sensor, 6mm Dia, 100mm Long, 4 Wire, G1/2, +200°C Max

Client Protection

Dedicated Support

Client Protection

Dedicated Support

ifm TA2532, PT1000 RTD Sensor, 6mm Dia, 100mm Long, 4 Wire, G1/2, +200°C Max

Part Number : TA2532

Availability: Sold out

Detailed Description
Specifications

ifm Electronic TA Series Hygienic Temperature Transmitter

Ifm Electronic TA series temperature sensor is a compact universal transmitter with a 4 mA to 20 mA current output. The TA sensors Pt1000 measuring element achieves high precision with scalable parameters that can bet set via an integrated IO-Link interface.

Features and Benefits

IO-Link interface
LED status indicator
Fast response time
Pt1000, class A measuring element
Hygienic process connections
High grade 316 stainless steel
IP69K Rated

Brand	ifm
Sensor Type	PT1000
Probe Length	100mm
Probe Diameter	6mm
Minimum Temperature Sensed	-50°C
Maximum Temperature Sensed	+200°C
Termination Type	M12 Connector
Probe Material	Stainless Steel
Process Connection	G1/2
Interface	IO-Link
Number Of Wires	4
Response Time	2 s
