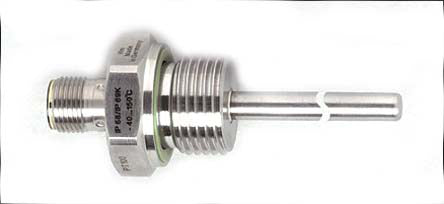

ifm TM4441 | RTD Sensor | G1/2, +150°C
The ifm TM4441 is a rtd sensor with process connection G1/2, sensor type PT100 and probe length 136mm. ifm lists precise temperature measurement in containers, tanks and pipes, for the connection to an evaluation unit and very short response time for use in processes with fast temperature fluctuations among its features.
- Sensor Type: PT100
- Probe Length: 136mm
- Probe Diameter: 6mm
- Maximum Temperature Sensed: +150°C
- Termination Type: M12 Connector
- Probe Material: Stainless Steel
- Process Connection: G1/2
- Number Of Wires: 4
- Detailed Description
- Specifications
- Features
- Downloads
ifm Electronic TM/TT Series Temperature Transmitter
Features and Benefits
Fast response time
High grade 316 stainless steel
IP69K Rated
High pressure resistance
| Brand | ifm |
| Sensor Type | PT100 |
| Minimum Temperature Sensed | -40 °C (-40 °F) |
| Maximum Temperature Sensed | +150 °C (302 °F) |
| Process Connection | G1/2 |
| Probe Length | 136 mm (5.35 in) |
| Probe Diameter | 6 mm (0.236 in) |
| Response Time | 3 s |
| Termination Type | M12 Connector |
| Probe Material | Stainless Steel |
| Number Of Wires | 4 |
- Precise temperature measurement in containers, tanks and pipes
- For the connection to an evaluation unit
- Very short response time for use in processes with fast temperature fluctuations
- Robust stainless steel housing with high protection rating and high pressure resistance
- Variable process connection using adapters
