ifm TT1081, Temperature Sensor Temperature Sensor, 10mm Dia, 160mm Long, Clamp Adapter, ± 0.15 K +150°C Max

Name: ifm TT1081, Temperature Sensor Temperature Sensor, 10mm Dia, 160mm Long, Clamp Adapter, ± 0.15 K +150°C Max
Brand: ifm
SKU: TT1081
Availability: OutOfStock

Part Number : TT1081

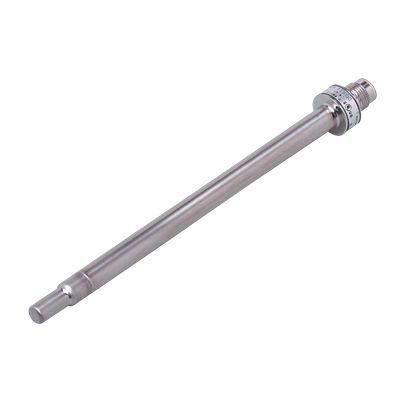

The TT1081 Pt100 immersion probe from ifm is a resistance thermometer that carries out precise measurements in a temperature range from -40-150 °C. The high-grade stainless steel housing with high protection rating IP68/IP69K has an installation length of 160 mm. The robust sensor probe has a diameter of 10 mm. Thanks to the latest technologies and a thin sensor tip the TT1081 Pt100 screw-in sensor features extremely fast response times of T05 = 1 s and T09 = 3 s. The long life and the high pressure rating for individual applications distinguish this resistance thermometer. The TT1081 Pt100 immersion probe with M12 connector is ideal for temperature measurements in industrial applications in factory automation, e.g. in hydraulic power packs.

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

The ifm electronic temperature probe sensor delivers precise temperature measurements across a range of -40 to 150 °C (-40 to 302 °F), making it an essential instrument for monitoring liquid and gas processes. Its robust design features a cylindrical stainless steel housing and a 10 mm clamp adapter process connection, ensuring reliable performance in demanding environments. This sensor is equipped with gold-plated contacts and a measuring element of 1 x Pt 100, compliant with DIN EN 60751, class A standards. With an impressive protection rating of IP 68 and IP 69K, it withstands harsh conditions while maintaining accurate readings. An optimal installation length of 160 mm facilitates easy integration, providing versatility for diverse applications.

Measuring range from -40 to 150 °C ensures versatility in various applications
Robust stainless steel (316L/1.4404) construction enhances durability
Gold-plated contacts improve connectivity and reduce corrosion
IP 68 and IP 69K protection ratings safeguard against water and dust ingress

Brand	ifm
Sensor Type	Temperature Sensor
Probe Length	160mm
Probe Diameter	10mm
Minimum Temperature Sensed	-40°C
Maximum Temperature Sensed	+150°C
Process Connection	Clamp Adapter
Accuracy	± 0.15 K

Precise temperature measurement in containers, tanks and pipes
For the connection to an evaluation unit
Very short response time for use in processes with fast temperature fluctuations
Robust stainless steel housing with high protection rating and high pressure resistance
Variable process connection using adapters
