ifm TT3081, Temperature Sensor Temperature Sensor, 10mm Dia, 360mm Long, Clamp Adapter, ± 0.15 K +150°C Max

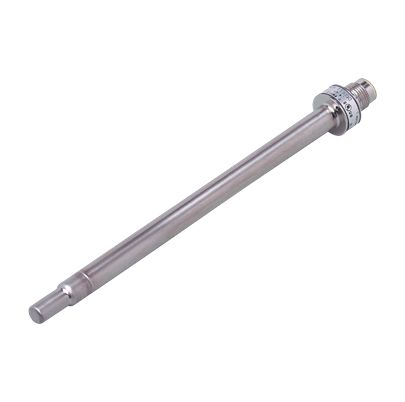

Name: ifm TT3081, Temperature Sensor Temperature Sensor, 10mm Dia, 360mm Long, Clamp Adapter, ± 0.15 K +150°C Max
Brand: ifm
SKU: TT3081
Availability: OutOfStock

Part Number : TT3081

The TT3081 Pt100 screw-in sensor from ifm is a resistance thermometer that carries out precise measurements in a temperature range from -40-150 °C. The high-grade stainless steel housing with high protection rating IP68/IP69K has an installation length of 360 mm. The robust sensor probe has a diameter of 10 mm. Thanks to the latest technologies and a thin sensor tip the TT3081 Pt100 screw-in sensor features extremely fast response times of T05 = 1 s and T09 = 3 s. The long life and the high pressure rating for individual applications distinguish this resistance thermometer. The TT3081 Pt100 screw-in sensor with M12 connector is ideal for temperature measurements in industrial applications in factory automation, e.g. in hydraulic power packs.

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

The ifm electronic temperature probe sensor is designed for precise temperature measurement across a wide range, ensuring accuracy in both liquid and gas media. Its robust construction, featuring stainless steel housing and gold-plated contacts, makes it suitable for demanding industrial environments. With a measuring range from -40 to +150 °C, this probe is ideal for applications requiring reliable temperature monitoring. The device supports a substantial pressure rating of 160 bar and features quick response times in accordance with DIN EN 60751 standards, significantly enhancing operational efficiency. Its compact design allows for straightforward installation, making it an excellent choice for diverse industrial needs.

Measuring range spans from -40 to 150 °C, accommodating various applications
Robust stainless steel construction ensures durability and long service life
Gold-plated contacts enhance electrical connection reliability
Compact probe diameter of 10 mm allows for easy integration

Brand	ifm
Sensor Type	Temperature Sensor
Probe Length	360mm
Probe Diameter	10mm
Minimum Temperature Sensed	-40°C
Maximum Temperature Sensed	+150°C
Process Connection	Clamp Adapter
Accuracy	± 0.15 K

Precise temperature measurement in containers, tanks and pipes
For the connection to an evaluation unit
Very short response time for use in processes with fast temperature fluctuations
Robust stainless steel housing with high protection rating and high pressure resistance
Variable process connection using adapters
