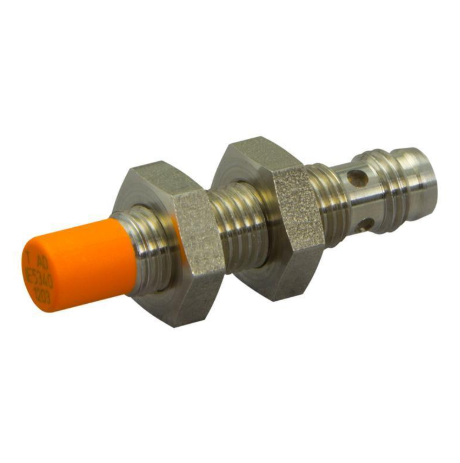

ifm IE5340 - IEBC005-ASKG/AS-514 | Inductive Sensor | 5 mm, Normally open
The ifm IE5340 - IEBC005-ASKG/AS-514 is an inductive sensor with sensing range 5 mm, output function Normally open and electrical design PNP/NPN. ifm lists particularly short housing, for use where space is restricted and clearly visible indication of the switching status among its features.
- Ambient temperature: 0 to 60 °C
- Electrical design: PNP/NPN
- Housing: Threaded type
- Installation: Non flush
- Mounting: Non-flush mountable
- Operating voltage: 10-30 DC V
- Output function: Normally open
- Reverse polarity protection: Yes
- Specifications
- Features
- Downloads
| Electrical Design | PNP/NPN |
| Housing | Threaded type |
| Operating Voltage [V] | 10-30 DC V |
| Output Function | Normally open |
| Reverse Polarity Protection | Yes |
| Sensing Range [mm] | 5 mm (0.197 in) |
| Mounting | Non-flush mountable |
| Short-circuit Protection | Yes |
| Installation | Non flush |
| Ambient Temperature | 0 to 60 °C (32 to 140 °F) |
- Particularly short housing
- For use where space is restricted
- Clearly visible indication of the switching status
- Long sensing range for high uptime
- Reduced stock-keeping due to operation as three-wire or two-wire unit
