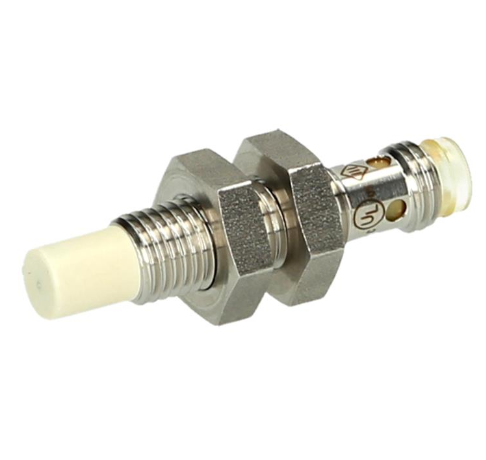

ifm IES201 - IEB3006-BPKG/V4A/K1/AS | Inductive Sensor | 6 mm, Normally open
The ifm IES201 - IEB3006-BPKG/V4A/K1/AS is an inductive sensor with sensing range 6 mm, output function Normally open and electrical design PNP. ifm lists suitable for industrial, mobile, cooling and lubricating applications, high protection rating for the requirements of harsh industrial environments and correction factor K=1: Constant sensing range on all metals among its features.
- Electrical design: PNP
- Housing: Threaded type
- Mounting: Non-flush mountable
- Operating voltage: 10-30 DC V
- Output function: Normally open
- Overload protection: Yes
- Reverse polarity protection: Yes
- Sensing range: 6 mm
- Specifications
- Features
- Downloads
| Electrical Design | PNP |
| Housing | Threaded type |
| Operating Voltage [V] | 10-30 DC V |
| Output Function | Normally open |
| Reverse Polarity Protection | Yes |
| Sensing Range [mm] | 6 mm (0.236 in) |
| Mounting | Non-flush mountable |
| Overload Protection | Yes |
| Short-circuit Protection | Yes |
| Switching Frequency DC [Hz] | 2000 Hz |
- Suitable for industrial, mobile, cooling and lubricating applications
- High protection rating for the requirements of harsh industrial environments
- Correction factor K=1: Constant sensing range on all metals
- Very high switching frequency
- Vibration and shock resistant
