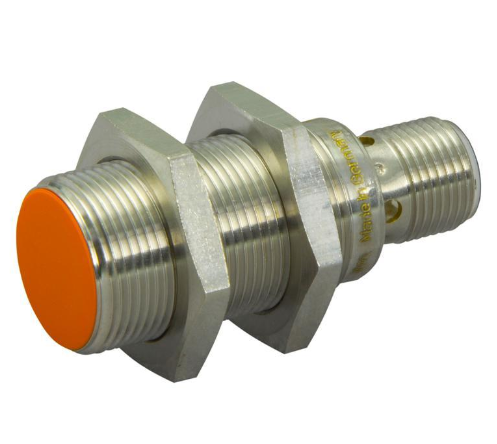

ifm IGS206 - IGB3008BAPKG/M/US | Inductive Sensor | 8 mm, Normally closed
The ifm IGS206 - IGB3008BAPKG/M/US is an inductive sensor with sensing range 8 mm, output function Normally closed and electrical design PNP. ifm lists robust metal housing for use in harsh industrial environments, clearly visible indication of the switching status and long sensing range for high uptime among its features.
- Electrical design: PNP
- Installation: Flush
- Mounting: Flush mountable
- Operating voltage: 10-36 DC V
- Output function: Normally closed
- Overload protection: Yes
- Reverse polarity protection: Yes
- Sensing range: 8 mm
- Specifications
- Features
- Downloads
| Electrical Design | PNP |
| Operating Voltage [V] | 10-36 DC V |
| Output Function | Normally closed |
| Reverse Polarity Protection | Yes |
| Sensing Range [mm] | 8 mm (0.315 in) |
| Mounting | Flush mountable |
| Overload Protection | Yes |
| Short-circuit Protection | Yes |
| Switching Frequency DC [Hz] | 400 Hz |
| Installation | Flush |
- Robust metal housing for use in harsh industrial environments
- Clearly visible indication of the switching status
- Long sensing range for high uptime
- Permanently legible laser type label
