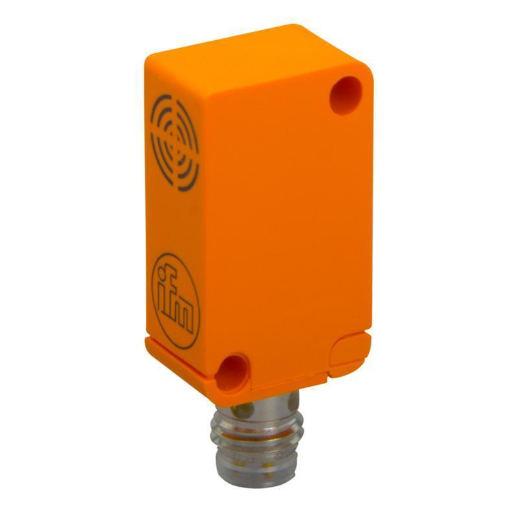

ifm IS5035 - IS-3002-BPOG/AS | Inductive Sensor | 2 mm, Normally open
The ifm IS5035 - IS-3002-BPOG/AS is an inductive sensor with sensing range 2 mm, output function Normally open and electrical design PNP. ifm lists particularly space-saving rectangular housing, for use where space is restricted and very high switching frequency among its features.
- Electrical design: PNP
- Housing: Rectangular
- Mounting: Flush mountable
- Operating voltage: 10-30 DC V
- Output function: Normally open
- Overload protection: Yes
- Reverse polarity protection: Yes
- Sensing range: 2 mm
- Specifications
- Features
- Downloads
| Electrical Design | PNP |
| Housing | Rectangular |
| Operating Voltage [V] | 10-30 DC V |
| Output Function | Normally open |
| Reverse Polarity Protection | Yes |
| Sensing Range [mm] | 2 mm (0.079 in) |
| Mounting | Flush mountable |
| Overload Protection | Yes |
| Short-circuit Protection | Yes |
| Switching Frequency DC [Hz] | 800 Hz |
- Particularly space-saving rectangular housing
- For use where space is restricted
- Very high switching frequency
- Wide operating temperature range
- With space-saving M8 connector
