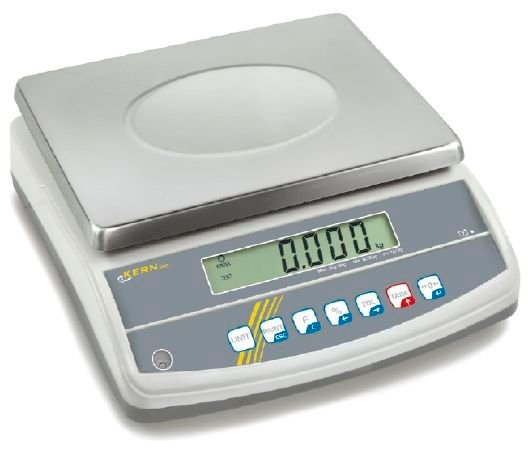

KERN GAB 0.1N | Counting Bench Scale | 12 kg, d = 100 mg
Weighing up to 12 kg in steps of 100 mg, the KERN GAB 0.1N uses a stainless steel plate measuring 294 × 225 mm. Compact enough for small spaces, the GAB 0.1N can total piece counts and run on optional batteries.
- Repeatability of 100 mg and linearity of 300 mg at 12 kg
- Stabilisation time 2 s, warm-up 2 h
- Piece counting with a 1 g minimum piece weight (100 mg under laboratory conditions), plus percentage determination
- Check-weighing against tolerance limits
- Battery operating time up to 90 h with backlight off (40 h with backlight on); rechargeable battery optional
- GAB 0.1N weighing units: g kg
- Specifications
- Features
| Part Number | GAB 0.1N |
| Brand | KERN |
| Linearity | 300 mg |
| Reproducibility | 100 mg |
| Weighing Surface (W × D) | 294 × 225 mm (11.6×8.86 in) |
| Weighing Plate Material | Stainless steel |
| KERN Item Number | GAB 12K0.1N |
| Maximum Capacity | 12 kg (26.5 lb) |
| Readout (d) | 100 mg |
| Stabilisation Time | 2 s |
| Weighing Units | g kg |
| Operating Time (Backlight Off) | 90 h |
| Recommended Adjusting Weight | 12 kg (F2) |
| Mains Input | 110 V - 230 V AC |
- Weighing with tolerance range (checkweighing): Input of an upper/lower limit value. A visual signal assists with portioning, dispensing or grading
