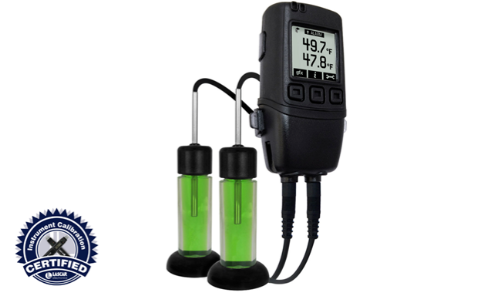

Lascar EasyLog | EL-GFX-VAC2 Dual Channel GFX Vaccine Monitoring Kit
The EL-GFX-VAC2 is a vaccine monitoring kit combining a USB dual channel data logger with two glycol bottle probes. The unit stores over 250,000 readings, has an on-screen display showing max, min and last log as well as an on-board graph of the data collected. Buttons allow the user to start, stop and restart the logger in the field and alarm breaches can be registered with both LED and audible alarms. The logger can be battery powered or used with a USB wall adaptor. Two channels allow measurement of two areas of a refrigerator or a refrigerator and freezer at the same time.
This product meets and exceeds CDC standards for vaccine monitoring.
- Specifications
- Features
- Downloads
| Accuracy | +/-0.1°C |
| Logging Rate | User selectable between 2 seconds and 1 hour |
| Measurement Range (Temp) | -40°C to 60°C |
| Operating Temperature | -10 to 40°C |
| Type | Display |
| Type | USB |
▪ -40 to +125°C (-40 to +257°F) measurement range
▪ Stores over 250,000 readings
▪ Logging rates between 2 seconds and 1 hour
▪ On screen menu and graphing to start, stop, review and restart the logger in the field
▪ Triggered logging mode to start recording data once a user defined level is met
▪ High contrast, greyscale, backlit, graphic LCD screen to denote status and alarm levels
▪ User-programmable audible alarm thresholds with highly visible confidence/alarm LEDs
▪ EasyLog software available as a free download
