Matherne Rotary Torque System | 6 in Gauge, 500 or 1,000 Point

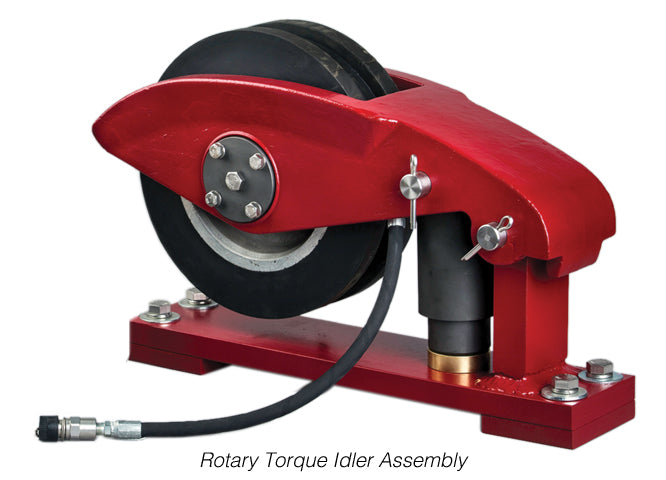

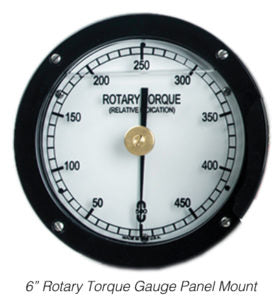

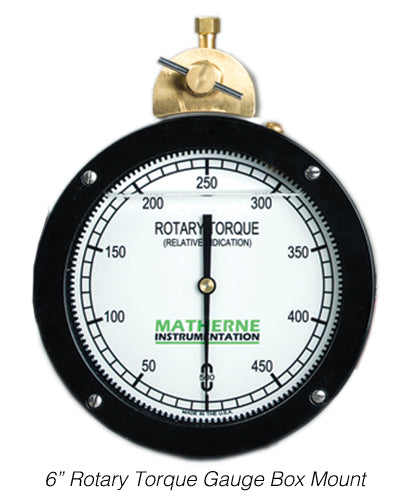

The Matherne rotary torque system gives the driller a relative torque reading during coring, milling and reaming, warning when the drill string approaches unsafe torque so twist-offs can be avoided. Capacity is expressed in points (500 or 1,000) rather than absolute torque units. The system includes the 6 in indicator with bracket, 2 ft and 14 ft hoses with disconnects, and an idler with wheel, in box-mount or panel-mount form.
Key features
- Operator-adjustable dial to zero out the drill string and follow torque at the bit
- Gauge damper limits pointer oscillation from string vibration
- Torque patterns help indicate hole conditions, locked cones and formation changes
- Connects to Matherne drilling recorders
- Other hose lengths available
Ordering specifications: indicator capacity (500 or 1,000 point), chain size or wheel type, indicator style and hose lengths (standard 2 ft and 14 ft).
For pricing, please contact our experts.
