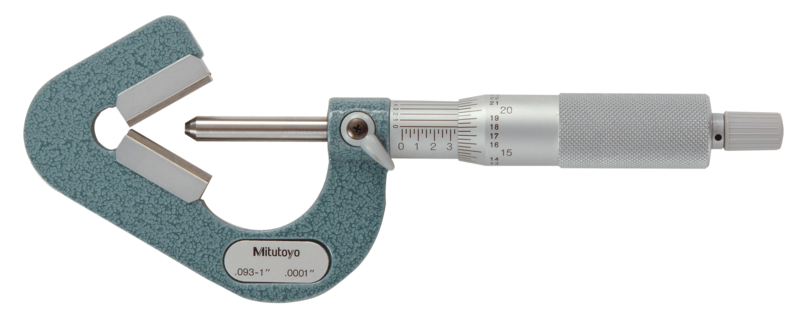

Mitutoyo 114-202 | V-Anvil Micrometer | 3 Flute, 0.0001 in Graduation
Made for 3-flute cutting tools, the Mitutoyo 114-202 V-anvil micrometer measures the outside diameter of taps, reamers and end mills. Its graduation is 0.0001 in, the spindle can be locked and the main unit weighs 290 g.
- Graduation 0.0001 in (inch)
- Prism angle 60°/108° for 3-flute tools (114-202)
- Main unit 290 g; measuring face flatness 0.000024 in
- Lockable Ø6.35 mm spindle with 0.75 mm pitch on the 114-202
- Delivered with setting standard, key and box (114-202)
- Specifications
- Features
- Downloads
| Part Number | 114-202 |
| Brand | Mitutoyo |
| Product Type | V-Anvil Micrometer |
| Flutes | 3 |
| Graduation | 0.0001 in |
| Inch/Metric | Inch |
| Analogue/Digital | Analogue |
| Prism Angle | 60°/108° |
| Flatness | 0.000024 in |
| Spindle | Ø6.35 mm, pitch 0.75 mm, with lock |
| Scale | Satin chrome thimble and sleeve, Ø18 mm |
| Mass (Main Unit) | 290 g |
| Supplied With | Box, setting standard, key |
This V-Anvil Micrometer helps you measure cutting tools and taps.
It offers the following benefits:
- It measures the outside diameter of cutting tools (such as taps, reamers, end mills) which have three or five flutes.
- V-anvils with a centreline groove are available for measuring the pitch diameter of taps by the single-wire method.
