Mitutoyo 145-217 | Caliper Jaw Inside Micrometer | 200 to 225 mm, 0.01 mm
Part No. 145-217 | Range 200–225 mm | Graduation 0.01 mm | Accuracy ±11 µm
Product Overview

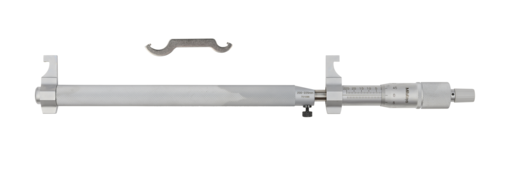

The Mitutoyo 145-217 Series 145 caliper jaw inside micrometer is designed for direct measurement of large internal dimensions from 200–225 mm. Its caliper-type jaws provide access to large bores, internal grooves, recesses and slot widths that can be difficult to measure with conventional outside micrometers.
The caliper-type jaws are made from high-grade tool steel and incorporate carbide-tipped measuring faces for durable contact with the measured feature. A spindle locking clamp helps retain the measurement after the jaws have been positioned, allowing the instrument to be withdrawn from deep or awkward locations without unnecessarily disturbing the setting.
The satin chrome thimble and sleeve provide a clear mechanical scale with 0.01 mm graduation. The fully mechanical analog design requires no batteries, making the micrometer suitable for routine workshop and inspection applications.
Before measurement, the inside micrometer should be checked and set against a reference of known size. A suitable setting ring or inside setting standard is required and is available separately.
Key Benefits
-
Measures internal features across the 200–225 mm range.
-
Provides ±11 µm accuracy with 0.01 mm graduation.
-
Caliper-type jaws provide access to large bores, grooves and recesses.
-
Carbide-tipped measuring faces provide durable measuring contact.
-
High-grade tool-steel jaws are suited to regular workshop measurement.
-
Spindle locking clamp helps retain the measured setting during withdrawal.
-
Satin chrome thimble and sleeve provide readable mechanical graduations.
-
Fully mechanical operation requires no batteries.
-
Supplied with a protective case.
-
A setting ring or suitable inside reference standard can be specified separately.
Who This Product Is Best For
The Mitutoyo 145-217 is suited to machine shops, hydraulic and pump repair workshops, valve manufacturing, maintenance departments and dimensional inspection applications in Kuwait.
It is useful for machinists checking large internal features, quality-control personnel verifying finished components and maintenance teams measuring bores and internal features on pumps, gearboxes, flanges and other large machined or fabricated components.
For features above the 200–225 mm range, the adjacent Series 145 size, Mitutoyo 145-218, covers 225–250 mm.
How to Use
-
Set the micrometer against a setting ring or suitable inside standard of known dimension and adjust it correctly.
-
Retract the jaws slightly below the expected feature size and position them squarely inside the bore or groove.
-
Expand the jaws gently until both measuring faces contact the internal surfaces.
-
Rock the micrometer slightly to locate the correct maximum reading across the feature.
-
Use the spindle locking clamp to retain the measurement if required, then withdraw the instrument and read the thimble and sleeve.
Frequently Asked Questions
What is the Mitutoyo 145-217 used for?
The 145-217 is an inside micrometer for measuring large internal dimensions such as bore diameters, internal grooves, recesses and slot widths from 200–225 mm.
How accurate is the Mitutoyo 145-217?
The specified accuracy is ±11 µm, with a graduation of 0.01 mm.
Does the Mitutoyo 145-217 require a setting ring?
Yes. An inside micrometer should be checked and set against a known reference before measurement. A suitable setting ring or inside setting standard is available separately.
What type of measuring faces does the 145-217 have?
The micrometer uses carbide-tipped measuring faces on its caliper-type jaws.
Is the Mitutoyo 145-217 digital or mechanical?
It is an analog, fully mechanical micrometer and does not require batteries.
What is the difference between the Mitutoyo 145-217 and 145-218?
The 145-217 covers 200–225 mm, while the 145-218 covers the adjacent 225–250 mm range.
How can I buy the Mitutoyo 145-217 in Kuwait?
Call Al Belad General Tech Services on +965 9807 4888 or email mathews@generaltechkuwait.com for pricing and availability.
