Mitutoyo 2356A-10 | Lug Back Dial Gauge | 0.25 in, 0.0001 in, ANSI/AGD
Part No. 2356A-10 | Range 0.25 inch | Graduation 0.0001 inch | Lug Back | Jewelled Bearing
Product Overview

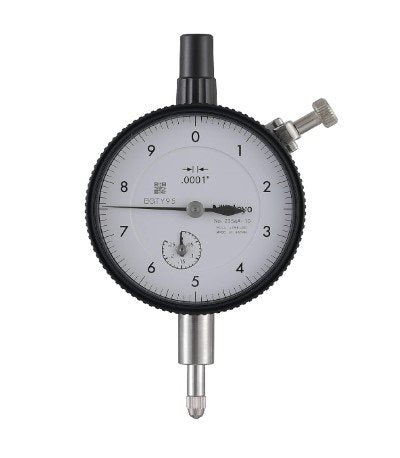

The Mitutoyo 2356A-10 is an ANSI/AGD-type Series 2 plunger-type dial gauge with a lug back, 0.0001 inch graduation and a 0.25 inch measuring range. It uses jewelled bearings and is designed for high-resolution comparative inspection where very small deviations need to be detected.
Made to American Gage Design dimensions, the 2356A-10 is suitable for compatible stands, holders and fixtures used in inspection rooms and machine-shop environments. Its 0.0001 inch graduation provides fine resolution over the 0.25 inch measuring range, making it suitable for precision comparative checks, setting gauges and comparing components against a suitable master.
The lug-back design provides a dedicated rear mounting point for securing the gauge directly to a compatible bracket or fixture. Jewelled bearings support smooth, sensitive pointer movement by reducing internal friction within the mechanical movement.
For applications requiring a flat-back configuration, the supplied reference identifies the Mitutoyo 2356AB-10 as the corresponding alternative.
Key Benefits
-
0.0001 inch graduation for fine, high-resolution readings
-
0.25 inch measuring range for precision comparative inspection
-
ANSI/AGD-type Series 2 design for compatibility with suitable inspection setups
-
Lug back for direct mounting to compatible brackets and fixtures
-
Jewelled bearings for smooth and sensitive pointer movement
-
Plunger-type construction for comparative measurement applications
-
Genuine Mitutoyo part supplied by General Tech Services LLC in Kuwait
Who This Product Is Best For
-
Quality-control inspectors performing high-resolution comparative measurement
-
Toolrooms and machine shops checking precision components and workpieces
-
Inspection teams setting gauges or comparing components against a master
-
Maintenance teams replacing an existing ANSI/AGD lug-back dial gauge
-
Buyers standardising precision inspection equipment around Mitutoyo products
How to Use It
-
Mount the gauge securely using its lug back or a suitable stem mounting arrangement on a rigid bracket, stand or fixture, keeping the plunger aligned with the surface being measured.
-
Apply a small amount of pre-load to the plunger and rotate the bezel to establish zero against a suitable reference surface or master.
-
Move the workpiece or gauge across the feature being inspected and observe the dial reading to determine the deviation.
-
Retract the plunger carefully after measurement and store the gauge clean, dry and protected.
Frequently Asked Questions
What is the Mitutoyo 2356A-10 dial gauge used for?
The Mitutoyo 2356A-10 is designed for high-resolution comparative inspection where very small deviations need to be measured. Its 0.0001 inch graduation and 0.25 inch range support fine-tolerance inspection applications.
What are the graduation and measuring range of the 2356A-10?
The Mitutoyo 2356A-10 has a 0.0001 inch graduation and a 0.25 inch measuring range.
What does ANSI/AGD mean on the Mitutoyo 2356A-10?
ANSI/AGD refers to the American Gage Design standard for dial indicators. The standardized design dimensions are intended for compatibility with suitable stands, holders and accessories.
What is the benefit of a lug-back design?
The lug back provides a dedicated mounting point that allows the gauge to be secured directly to a compatible bracket or fixture.
What is the benefit of jewelled bearings?
Jewelled bearings help reduce internal friction, supporting smooth and sensitive pointer movement during comparative measurement.
What is the difference between the 2356A-10 and 2356AB-10?
Both are listed with a 0.0001 inch graduation and a 0.25 inch measuring range. The 2356A-10 uses a lug-back configuration, while the 2356AB-10 is identified as the flat-back version. The appropriate model depends on the mounting arrangement of the inspection setup.
Is the genuine Mitutoyo 2356A-10 available in Kuwait?
General Tech Services LLC supplies genuine Mitutoyo products in Kuwait. For current pricing, lead time and stock availability, call +965 9807 4888.
Request Pricing and Availability
For the genuine Mitutoyo 2356A-10 dial gauge in Kuwait, contact General Tech Services LLC for current pricing, stock availability and lead-time information.
Call +965 9807 4888 for pricing and stock availability.
