Mitutoyo 2424A-19 | Lug Back Dial Gauge | 2 in, 0.001 in, ANSI/AGD
Part No. 2424A-19 | Range 2 inch | Graduation 0.001 inch
Product Overview

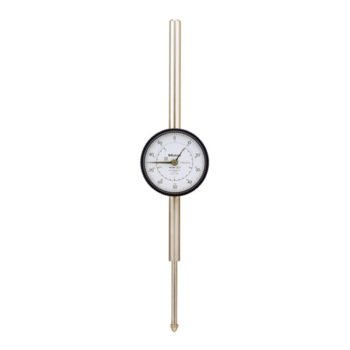

The Mitutoyo 2424A-19 is an ANSI/AGD-type Series 2 plunger dial gauge with a lug back, 0.001 inch graduation and a 2 inch measuring range. It uses jewelled bearings and is designed for long-travel measurement applications including heights, steps, runout and machine alignment.
Made to American Gage Design dimensions, the 2424A-19 is suitable for inspection stands, fixtures and holders designed around ANSI/AGD-type dial gauges. Its 2 inch measuring range provides extended travel for inspection tasks where longer movement is required without repeatedly resetting the gauge.
The lug back provides a dedicated rear mounting point for fastening the gauge to a bracket, fixture or machine setup. Jewelled bearings help reduce internal friction, supporting smooth and sensitive pointer movement during measurement.
For applications requiring a flat-back configuration, the Mitutoyo 2424AB-19 is the corresponding flat-back version.
Genuine Mitutoyo 2424A-19 units are supplied by General Tech Services LLC, Kuwait.
Key Benefits
-
0.001 inch graduation for clear and practical readings
-
2 inch measuring range for long-travel inspection
-
ANSI/AGD-type Series 2 design for compatibility with suitable inspection equipment
-
Lug back provides a dedicated mounting point for brackets and fixtures
-
Jewelled bearings support smooth, low-friction pointer movement
-
Suitable for measuring heights, steps, runout and machine alignment
-
Genuine Mitutoyo product supplied locally in Kuwait
Who This Product Is Best For
-
Inspectors measuring heights, steps and runout over a longer stroke
-
Toolrooms and machine shops performing workpiece setup and alignment checks
-
Maintenance teams replacing an existing ANSI/AGD lug-back dial gauge
-
Users requiring a dedicated rear mounting point for brackets or fixtures
-
Calibration and inspection teams using Mitutoyo measurement equipment
How to Use It
-
Secure the gauge using its lug back or suitable stem mounting arrangement on a rigid bracket, stand or fixture.
-
Position the plunger squarely against the surface or feature being measured.
-
Apply a small amount of pre-travel and rotate the bezel to establish the required zero position against a reference surface or master.
-
Move the workpiece or gauge across the feature and read the pointer movement directly from the dial.
-
Retract the plunger carefully after measurement and store the gauge clean, dry and protected.
Frequently Asked Questions
What is the Mitutoyo 2424A-19 dial gauge used for?
The Mitutoyo 2424A-19 is designed for long-travel measurement of heights, steps, runout and machine alignment. Its 0.001 inch graduation and 2 inch range provide extended measurement travel for these applications.
What are the graduation and range of the 2424A-19?
The 2424A-19 has a 0.001 inch graduation and a 2 inch measuring range.
What does ANSI/AGD mean on a dial gauge?
ANSI/AGD refers to the American Gage Design standard for dial indicators. The dimensional standard is used for compatibility with suitable stands, holders, fixtures and related inspection equipment.
What is the benefit of a lug back?
A lug back provides a dedicated rear mounting point, allowing the gauge to be secured directly to a compatible bracket, fixture or machine setup.
What are jewelled bearings used for in the 2424A-19?
Jewelled bearings help reduce internal friction within the gauge mechanism, supporting smooth and sensitive pointer movement during measurement.
What is the difference between the 2424A-19 and 2424AB-19?
The 2424A-19 has a lug-back configuration, while the 2424AB-19 is the corresponding flat-back version. Both are listed with a 0.001 inch graduation and 2 inch measuring range.
Is the genuine Mitutoyo 2424A-19 available in Kuwait?
General Tech Services LLC supplies genuine Mitutoyo products in Kuwait. +965 9807 4888 can be contacted for current pricing, lead time and availability.
Request Pricing and Availability
For genuine Mitutoyo 2424A-19 dial gauges in Kuwait, contact General Tech Services LLC for quotation, availability and supply information.
+965 9807 4888
