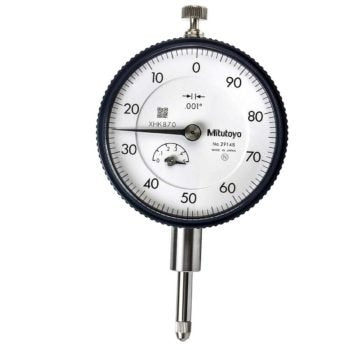

Mitutoyo 2914A | Reverse Reading Dial Indicator | 0.5 in Range, 0.001 in Graduation, Lug Back
This reverse reading dial indicator, Mitutoyo part number 2914A, reads to 0.001 in across a 0.5 in range. The 2914A dial reads 100-0 in the reverse direction.
- Reverse-reading dial, graduated 100-0; Mitutoyo Series 2, built to the ANSI/AGD pattern, mounting lug on the back
- Repeatability ±0.0002 in with 0.0002 in hysteresis; 4-48 UNF carbide-tipped contact point on a 9.52 mm (0.375 in) stem
- Measuring force 0.4–1.8 N; weight 164 g
- Graduated in 0.001 in steps
- Range 0.5 in; analogue dial readout
- Specifications
- Features
- Downloads
| Part Number | 2914A |
| Brand | Mitutoyo |
| Series | 2 |
| Range | 0.5 in |
| Graduation | 0.001 in |
| Dial Reading | 100-0 |
| Measuring Force | 0.4–1.8 N |
| Hysteresis | 0.0002 in |
| Repeatability | ±0.0002 in |
| Stem Diameter | 9.52 mm (0.375 in) |
| Back | Lug back |
| Standard | ANSI/AGD type |
| Contact Point | Carbide tipped, 4-48 UNF thread |
| Dial Type | Reverse reading |
- Lug Back Design – Enables secure attachment to stands and holders.
- Graduation of 0.001 inches – Provides precise and easy-to-read measurements.
- 0.5-inch Measuring Range – Ideal for general-purpose dimensional checks.
- Reverse Dial Face – Facilitates easy reading in confined spaces.
- ANSI/AGD Compliance – Meets American standards for dial indicators.
- Series 2 Model – Trusted for durability, accuracy, and industrial-grade performance.
