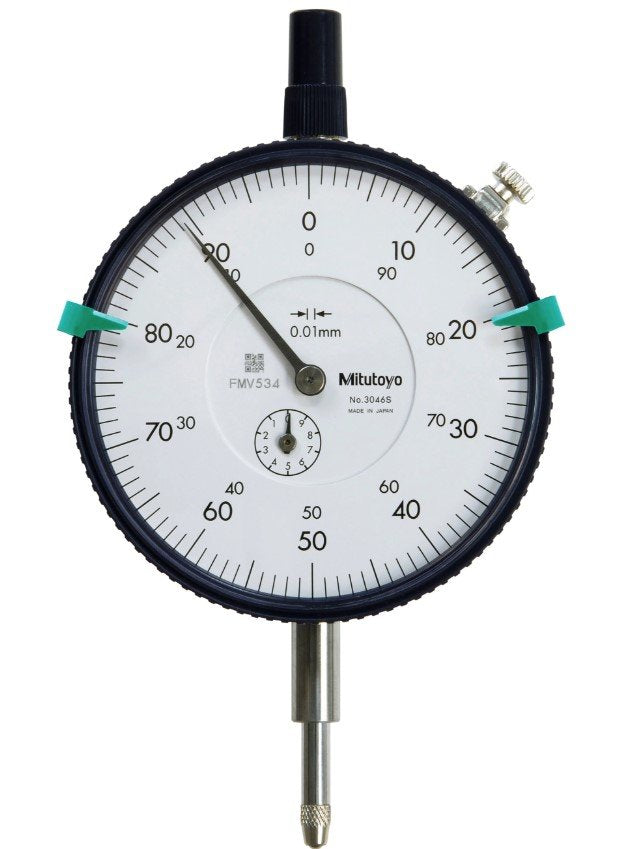

Mitutoyo 3046SB | Dial Indicator | Flat Back | Series 3 | Graduation 0.01 mm | Range 10 mm
The Mitutoyo 3046SB is a high-precision dial indicator designed for accurate linear measurement in industrial and mechanical settings. It features a flat back for easy mounting on fixtures and tools. Belonging to the trusted Series 3, it delivers reliable readings with 0.01 mm graduation and a 10 mm measuring range. The dial face offers clear visibility, aiding in quick and error-free readings. Ideal for comparative measurements and quality control tasks in machining and inspection environments.
- Specifications
- Features
- Downloads
| Contact point | Carbide tipped, thread: M 2.5 x 0.45 mm |
| Digital/Analog | Analog |
| Graduation | 0.01 mm |
| Hysteresis | 3 µm |
| Inch-Metric | Metric |
| Mass (main unit) | 237 g |
| Measuring range | 15 µm |
| Range | 10 mm |
| Repeatability | 3 µm |
| Series | 3 |
| Stem Dia | 8 mm |
| Type | Dial Indicator |
- Type: Dial Indicator with Flat Back for secure and stable mounting.
- Series 3: Designed for robust, general-purpose applications with a larger dial face for better readability.
- Graduation: 0.01 mm, ensuring precise and accurate measurements.
- Measuring Range: 10 mm, suitable for a wide range of industrial and inspection tasks.
- Shockproof Mechanism: Protects internal gear movement from sudden impacts.
- Durable Construction: High-quality materials for long-lasting use in workshop environments.
- Jeweled Bearings: Enhance accuracy and reduce wear over time.
