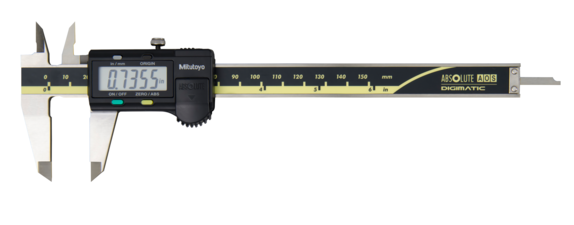

Mitutoyo 500-202-30 | ABSOLUTE AOS Digital Caliper | 0–6 in, 0.01 mm / 0.0005 in, Data Output
The Mitutoyo 500-202-30 is an ABSOLUTE AOS digital caliper with a 0–6 in range, 0.01 mm / 0.0005 in resolution and ±0.001 in accuracy. On the 500-202-30: the AOS induction encoder keeps reading reliably even with dirt, water or oil on the scale surface. This version includes Digimatic data output.
- Origin retained by the ABSOLUTE scale, even at power-on
- Unlimited response speed, so no overspeed errors
- AOS electromagnetic induction encoder
- Digimatic output for statistical process control
- Specifications
- Features
- Downloads
| Part Number | 500-202-30 |
| Brand | Mitutoyo |
| Range | 0–6 in |
| Data Output | Yes |
| Resolution | 0.01 mm / 0.0005 in |
| Accuracy | ±0.001 in |
| Units | Inch / metric |
- AOS (Advanced Onsite Sensor) induction type encoder used in top-of-the-line ABS coolant-proof calipers
- Thanks to the adoption of the electromagnetic induction type ABS encoder, this caliper can be used without concern for contamination on the scale face during measurement. Detection signal is not affected by dirt (water, oil, etc.) on surface of a scale.
- The slider provides smooth, stable and comfortable operation.
- Character height: 9 mm (150 and 200 mm), 11 mm (300 mm)
- ABS (ABSOLUTE) scale requires no origin setting after power-on and has no limit to response speed.
