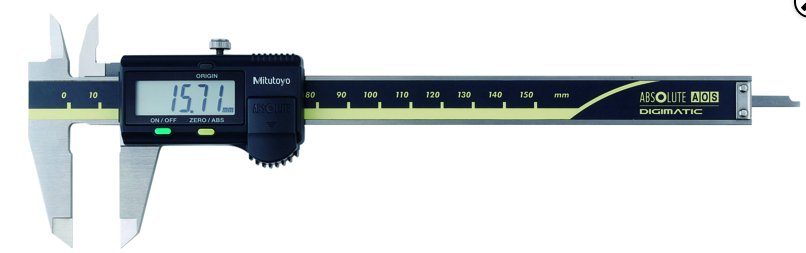

Mitutoyo 500-203-30 | ABSOLUTE AOS Digital Caliper | 0–150 mm, 0.01 mm, Data Output
With a 0–150 mm range, 0.01 mm resolution and ±0.02 mm accuracy, the 500-203-30 is an ABSOLUTE AOS digital caliper from Mitutoyo. On the 500-203-30, its electromagnetic induction AOS encoder is not affected by water or oil on the scale. Data output is included on this version.
- No re-zeroing after power-on thanks to the ABSOLUTE scale
- Slider can be moved at any speed without overspeed errors
- AOS sensor tolerant of dirt on the scale face
- Data output for SPC and measurement systems
- Specifications
- Features
- Downloads
| Part Number | 500-203-30 |
| Brand | Mitutoyo |
| Range | 0–150 mm (0.000 to 5.91 in) |
| Data Output | Yes |
| Resolution | 0.01 mm |
| Accuracy | ±0.02 mm |
| Units | Metric |
- AOS (Advanced Onsite Sensor) induction type encoder used in top-of-the-line ABS coolant-proof calipers
- Thanks to the adoption of the electromagnetic induction type ABS encoder, this caliper can be used without concern for contamination on the scale face during measurement. Detection signal is not affected by dirt (water, oil, etc.) on surface of a scale.
- The slider provides smooth, stable and comfortable operation.
- Character height: 9 mm (150 and 200 mm), 11 mm (300 mm)
- ABS (ABSOLUTE) scale requires no origin setting after power-on and has no limit to response speed.
