Part Number : 513-404-10T

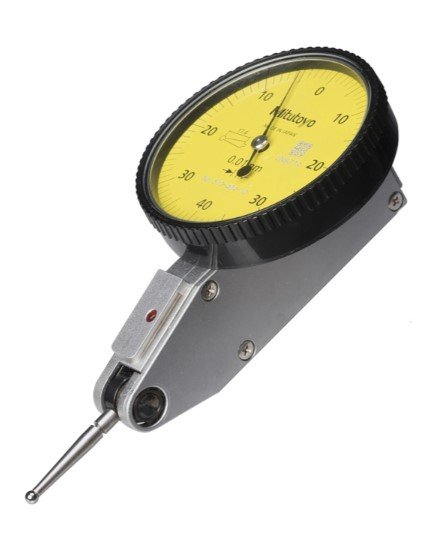

The Mitutoyo 513-404-10T is a high-precision horizontal dial test indicator from Series 513, ideal for detailed inspection tasks. This Full Set version includes a swivel clamp, offering maximum mounting flexibility and convenience. It provides a 0.8 mm measuring range with 0.01 mm graduation, ensuring accurate, repeatable results. Includes both 4 mm and 8 mm stems for versatile mounting compatibility. Perfect for surface alignment, runout testing, and fine-tolerance quality control in workshop environments.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Contact point	Thread M 1.7 x 0.35
Dial Reading	0-40-0
Digital/Analog	Analog
Graduation	0.01 mm
Hysteresis	3 µm
Inch-Metric	Metric
Mass (main unit)	45 g
Measuring Force	0.01 - 0.3 N
Measuring range	8 µm
Range	0.8 mm
Repeatability	3 µm
Series	513
Set Type	Full Set
Size	Stem Size : 4/8 mm
Type	Dial Test Indicator
Type	Horizontal

Graduation: 0.01 mm, providing high-resolution measurements.
Range: 0.8 mm, suitable for precise displacement measurements.
Dial Reading: 0–40–0, facilitating easy interpretation of measurements.
Measuring Force: 0.2 N or less, ensuring minimal impact on the measured surface.
Contact Point: Carbide, offering durability and resistance to wear.
Included Accessories: Comes with 8 mm and 4 mm stems, providing flexibility for various setups.
